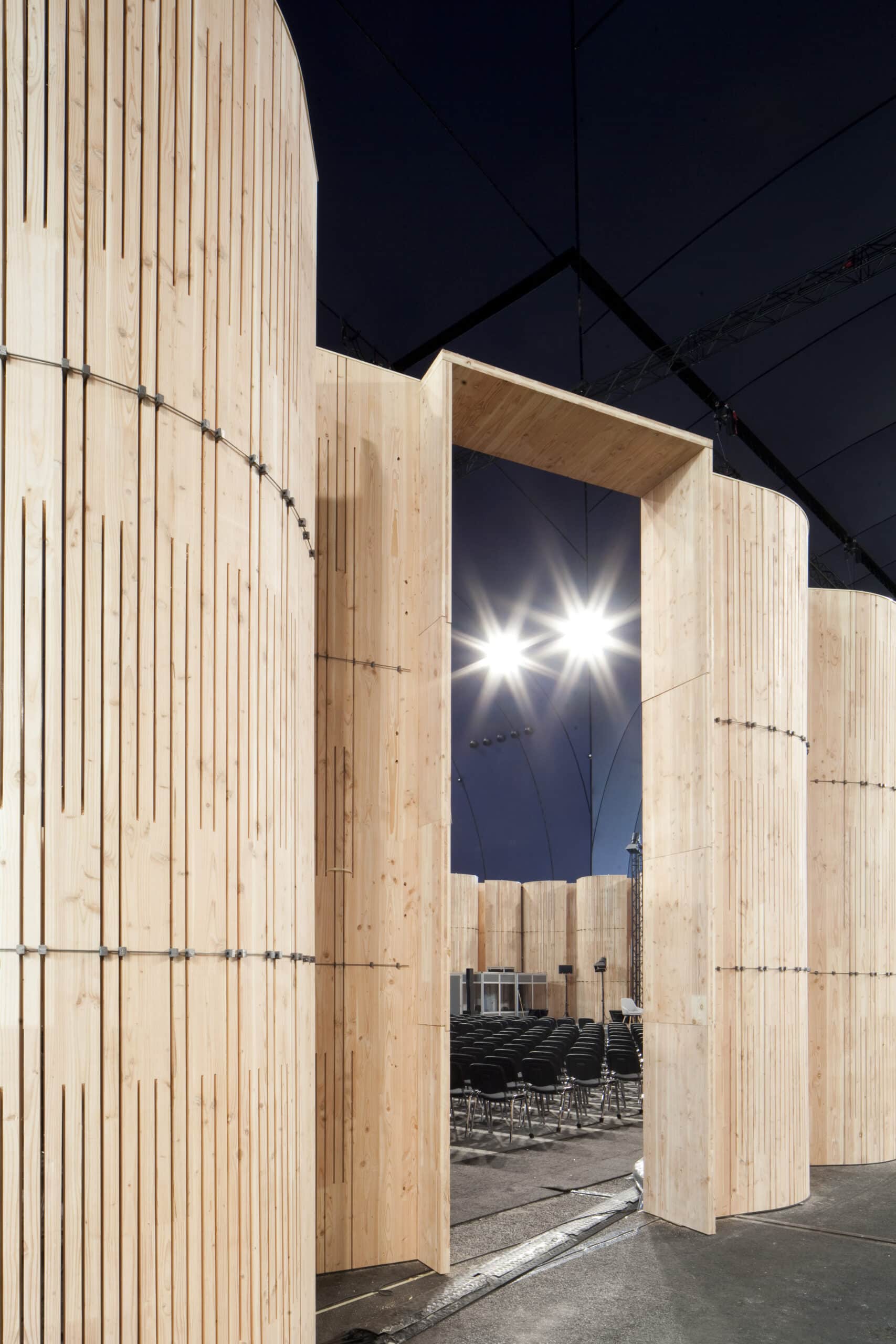

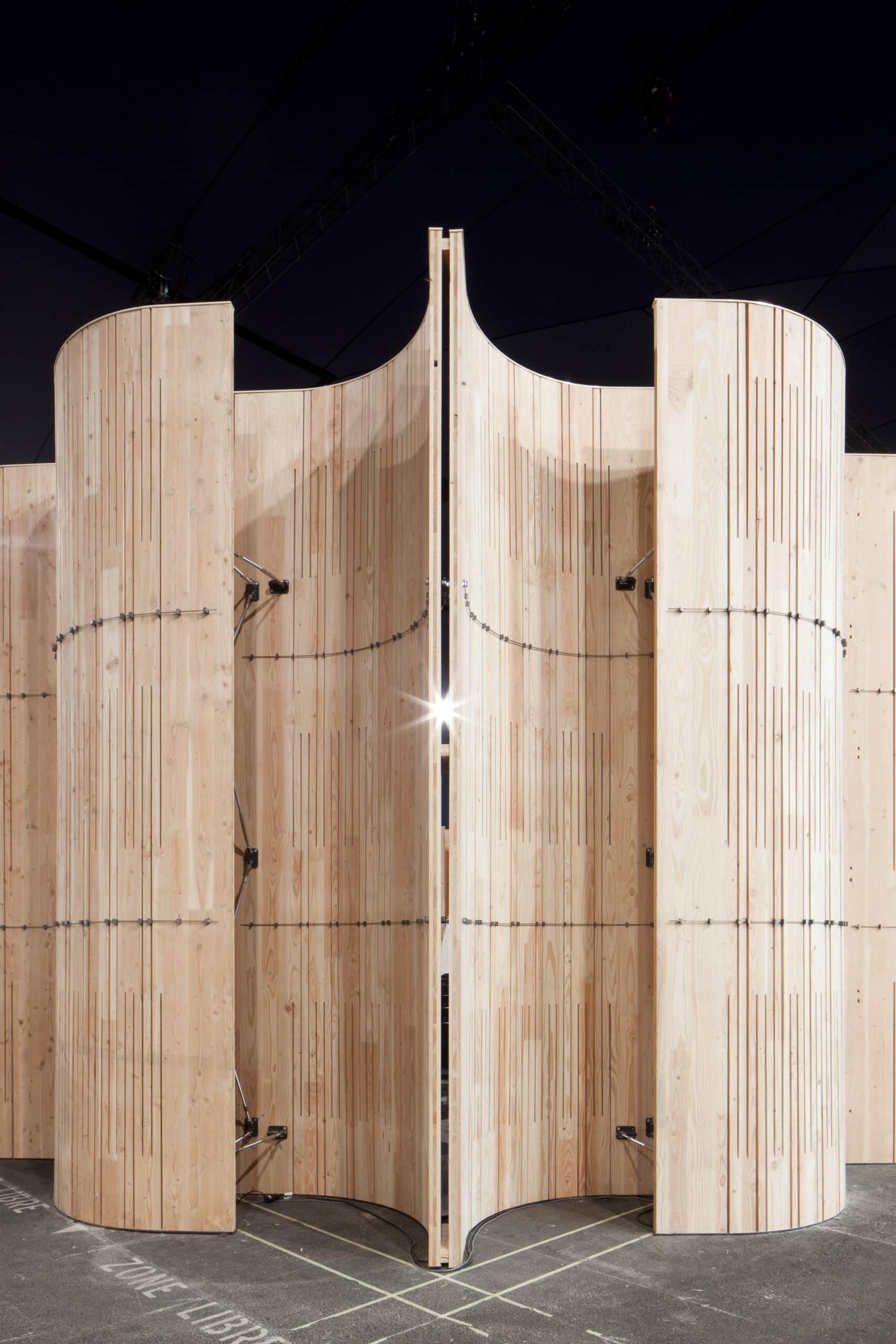

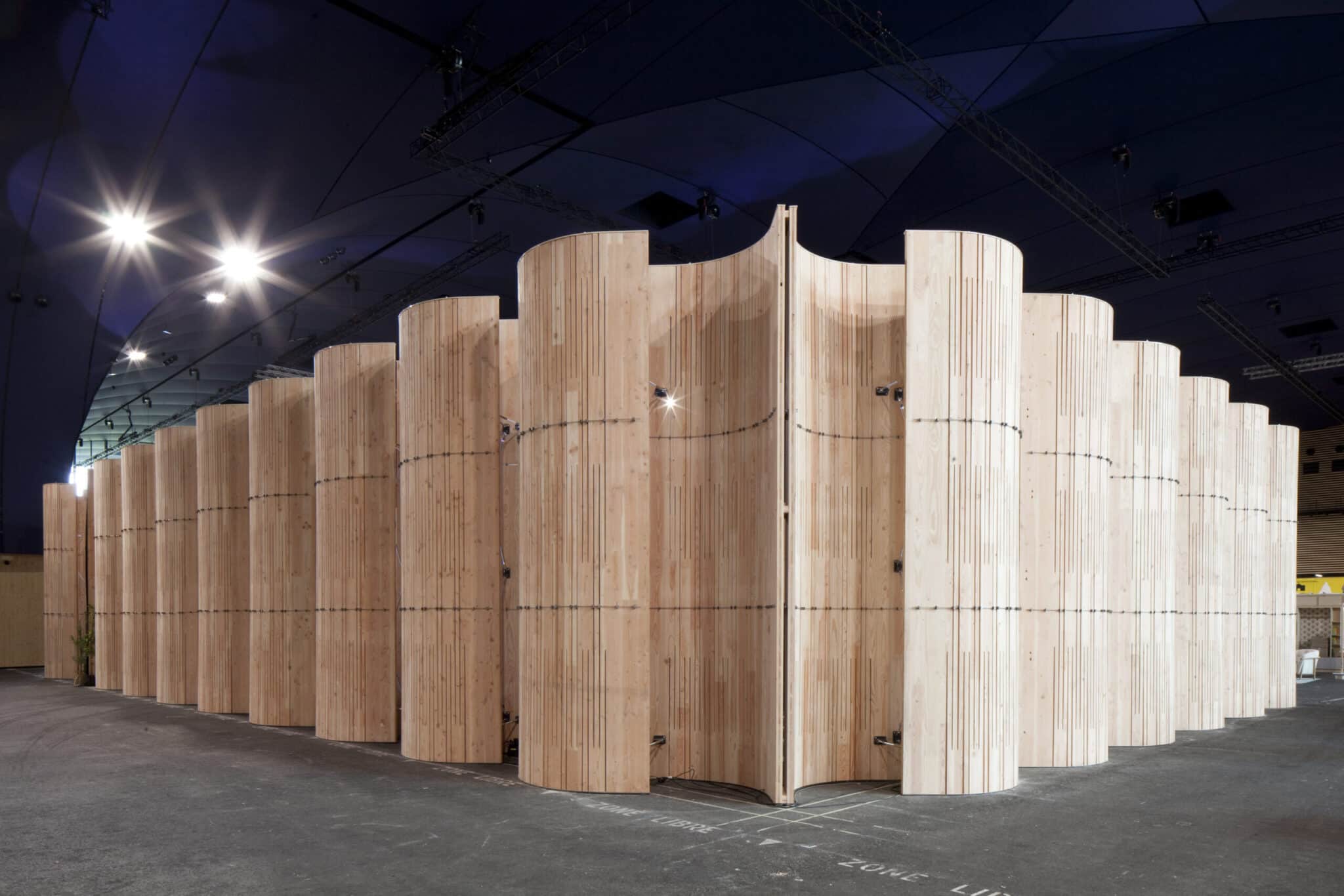

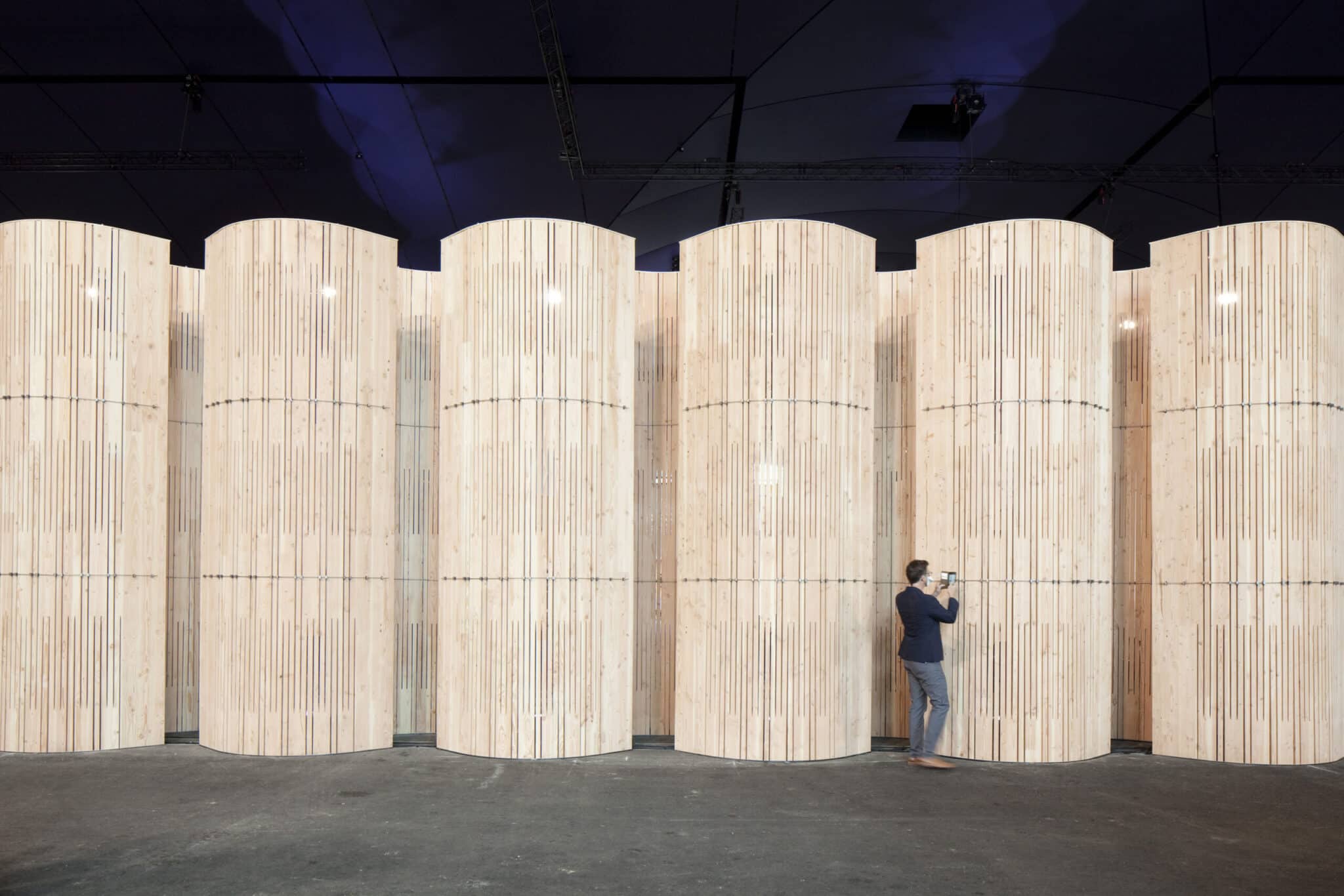

Photo of Ephemeral auditorium, cultural building in Paris, France
Photo of Ephemeral auditorium, cultural building in Paris, France
Photo of Ephemeral auditorium, cultural building in Paris, France

20.001.01

Ephemeral auditorium

France

Paris

0 sqm

Context

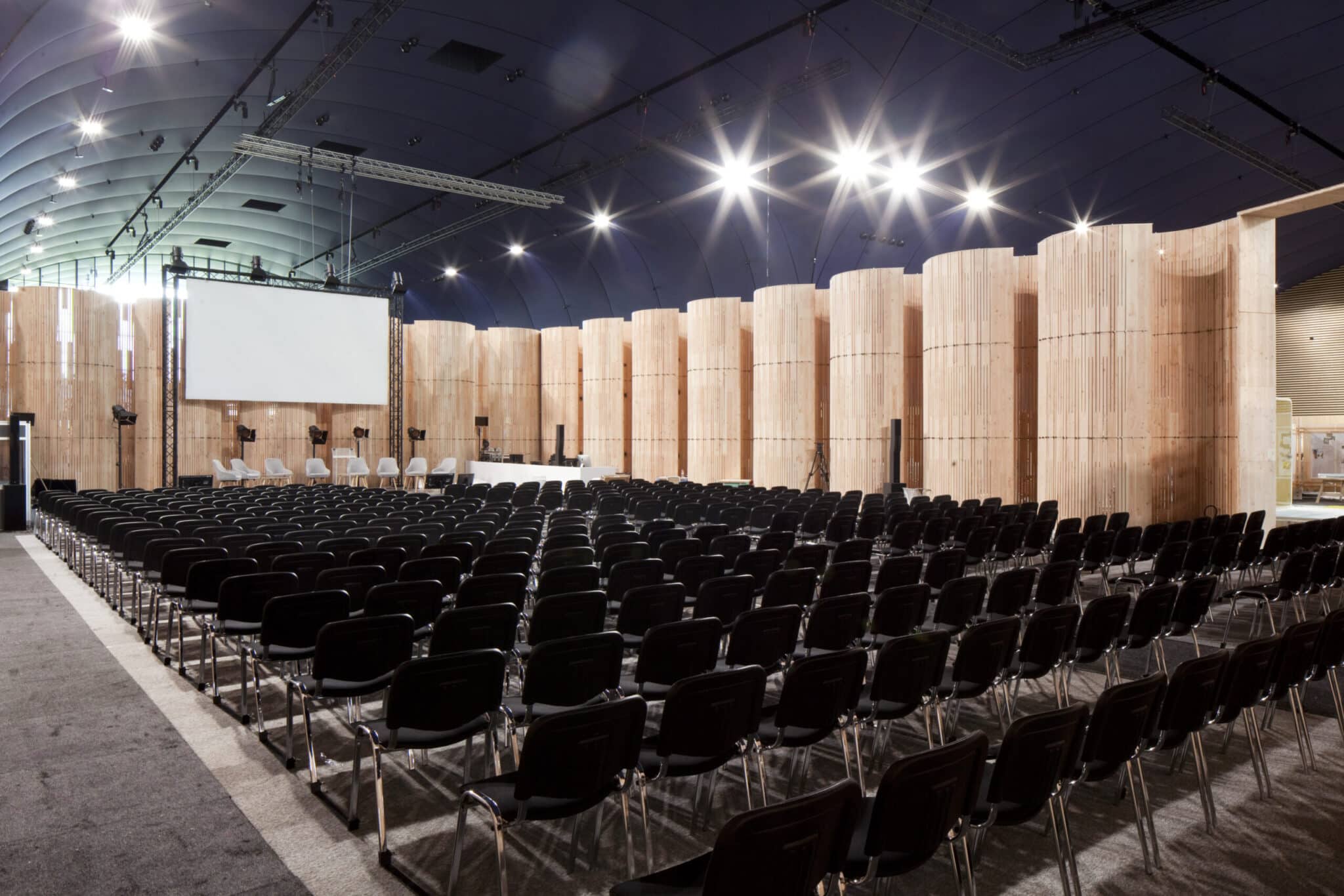

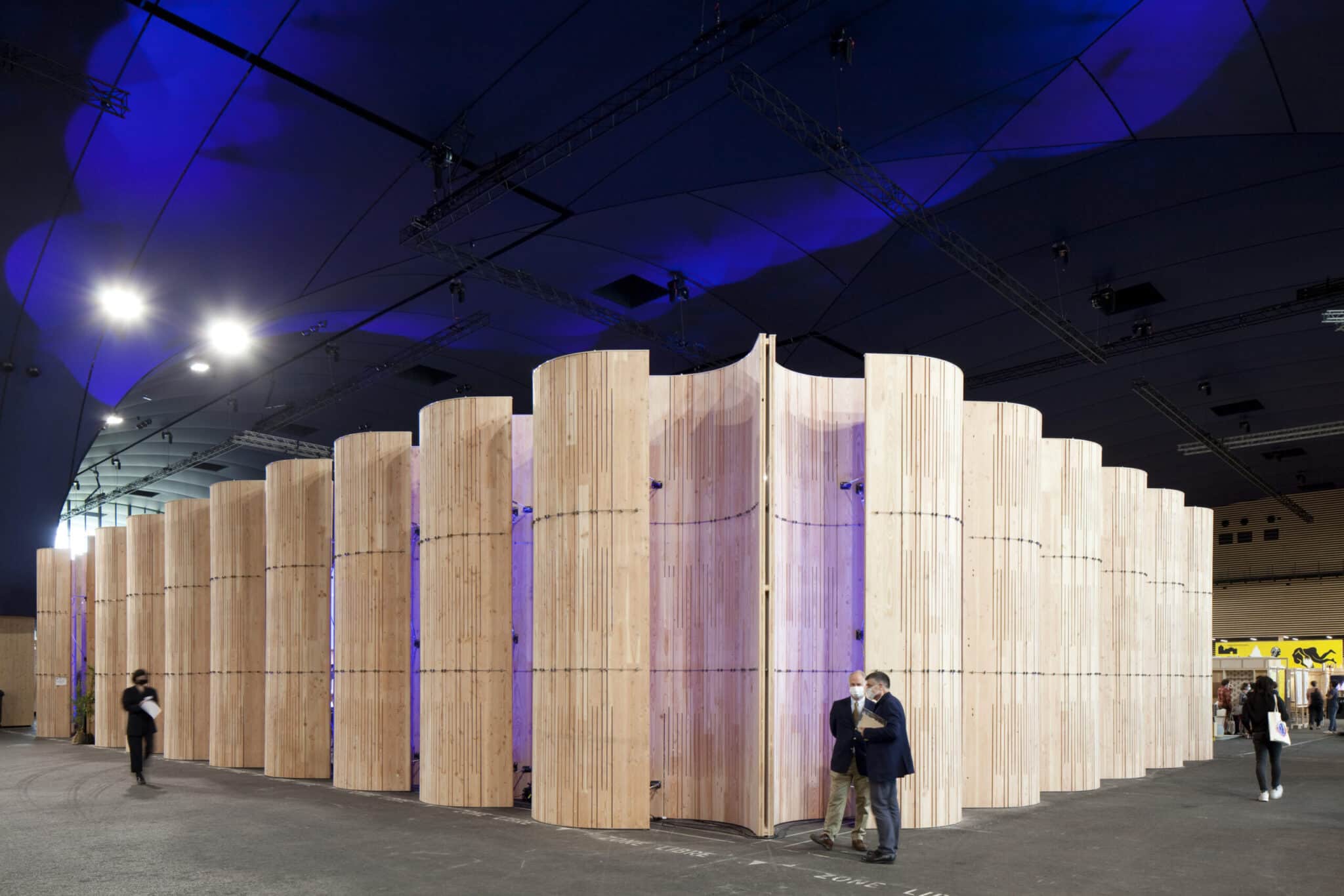

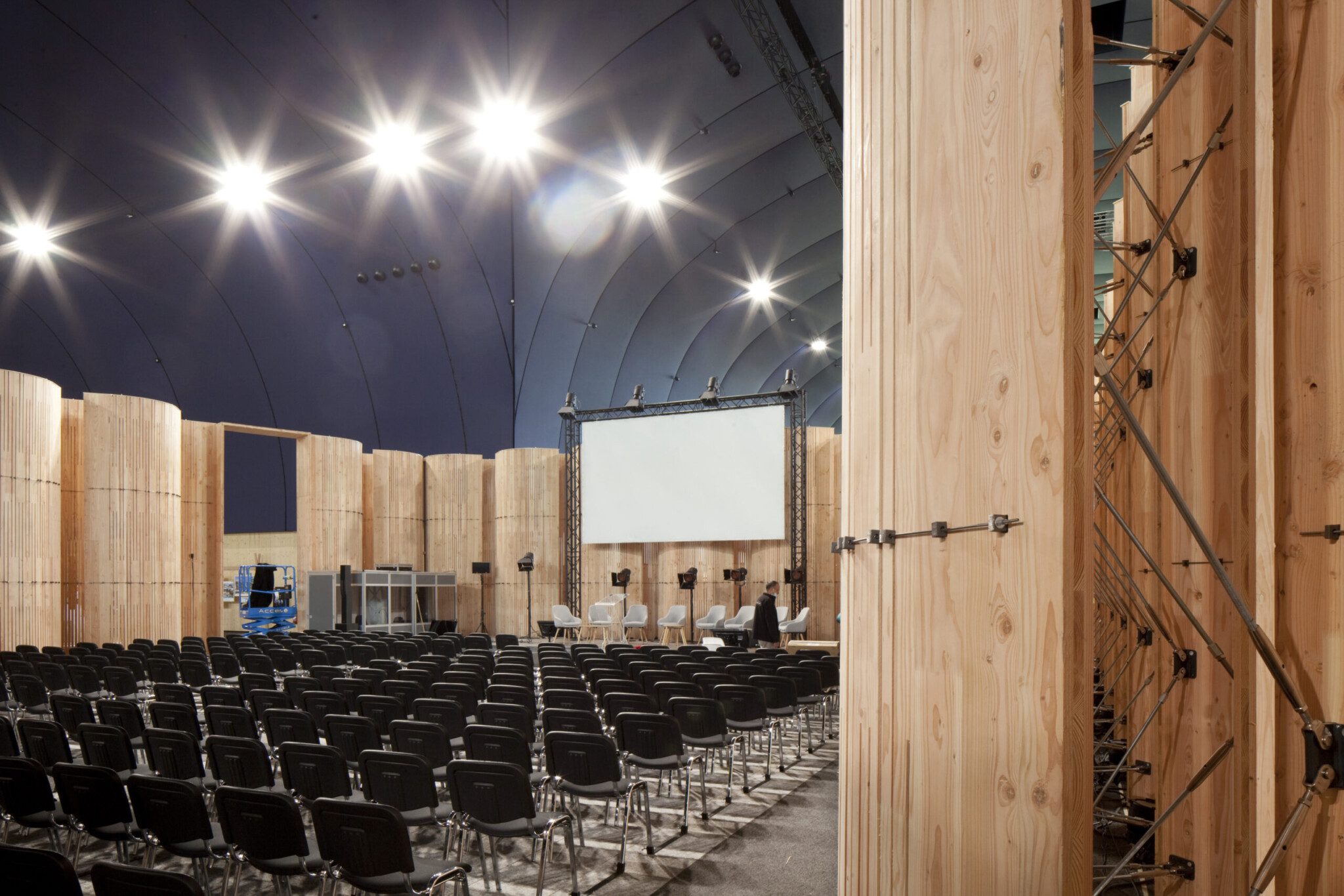

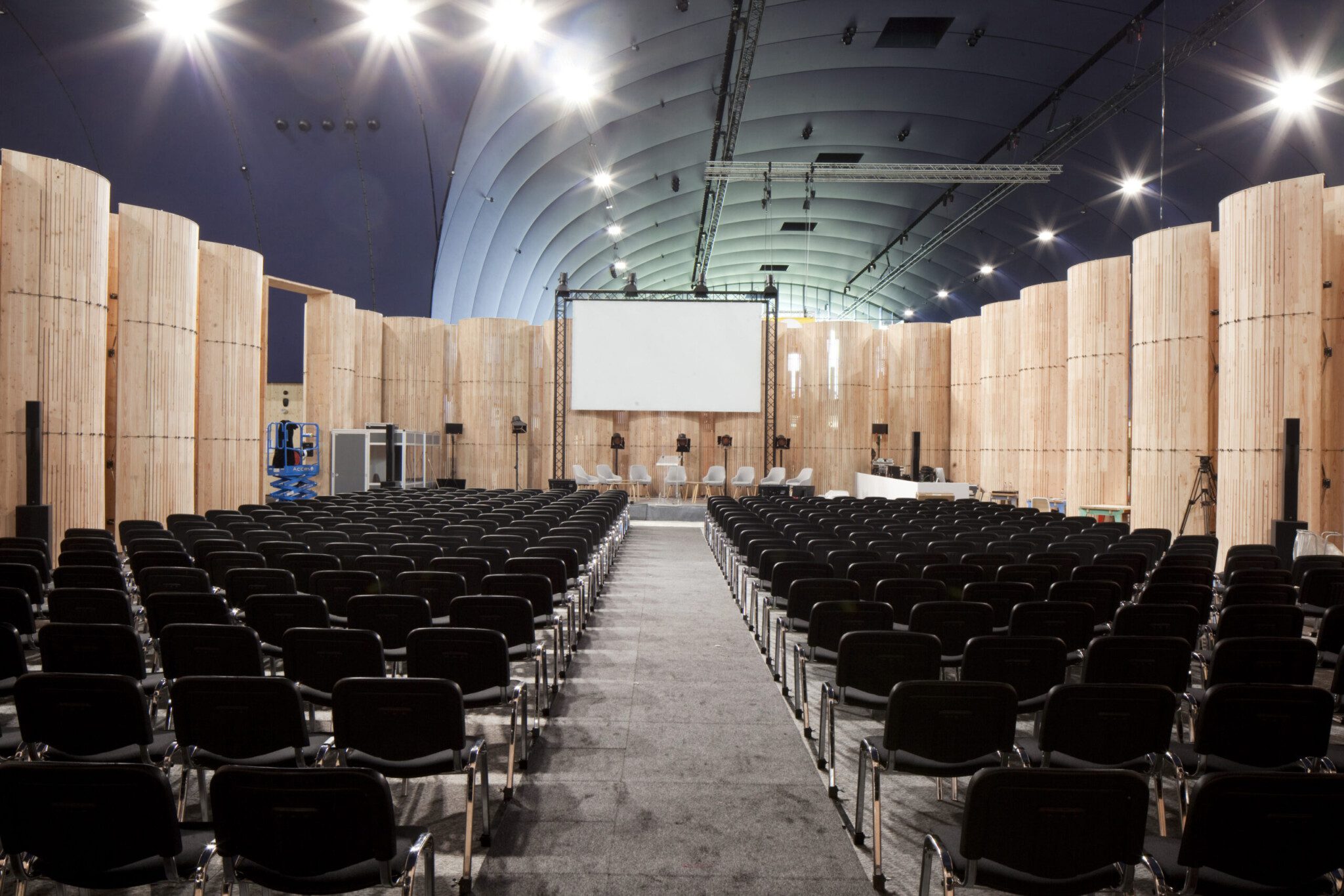

For the 10th edition of the Forum International Bois Construction in Paris, this temporary auditorium stood at the centre of the Grand Palais. A total of 64 bent CLT panels were assembled to create the plenary hall for the conferences. The structure is easy to dismantle and is designed to be reused for other events.

Particularities

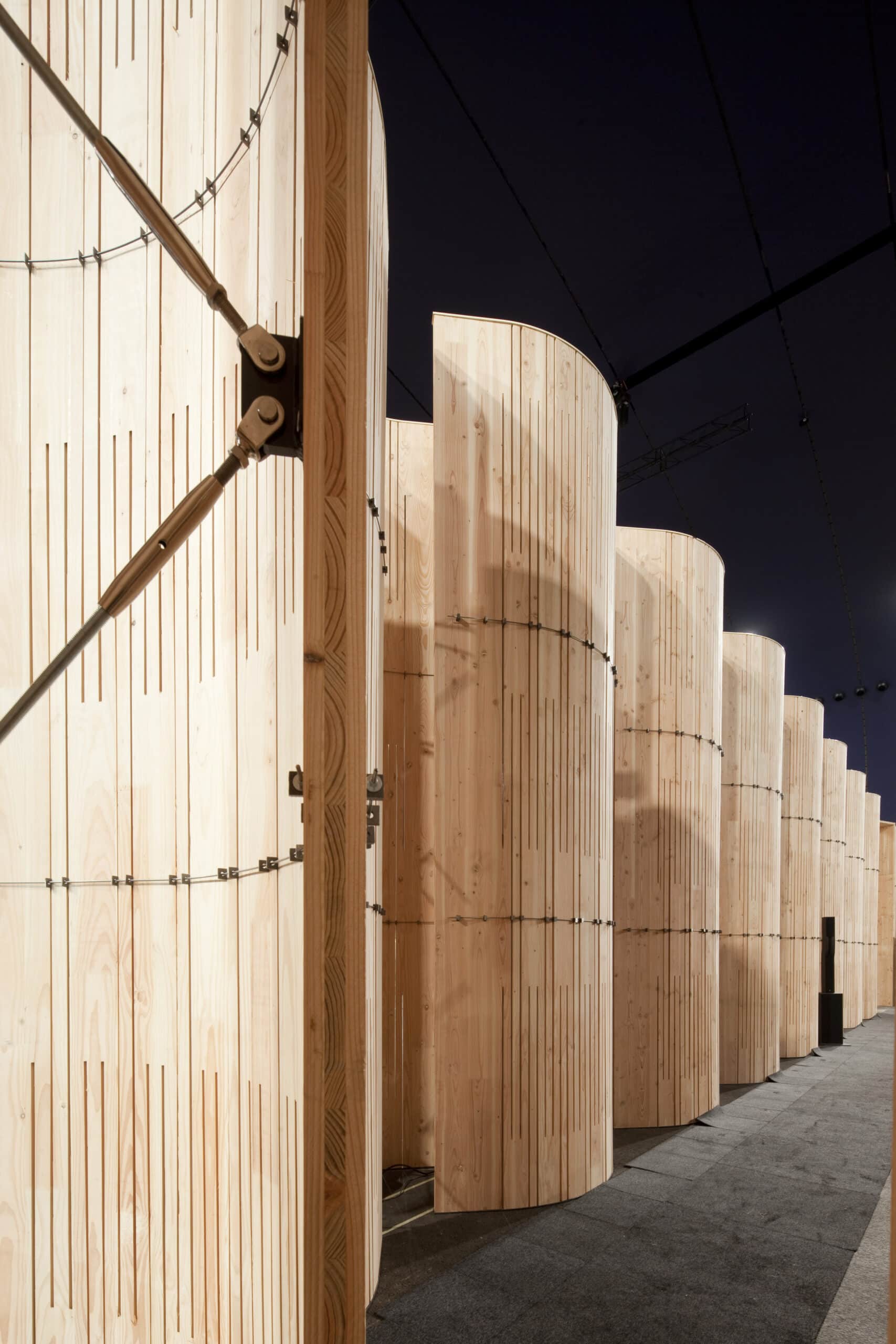

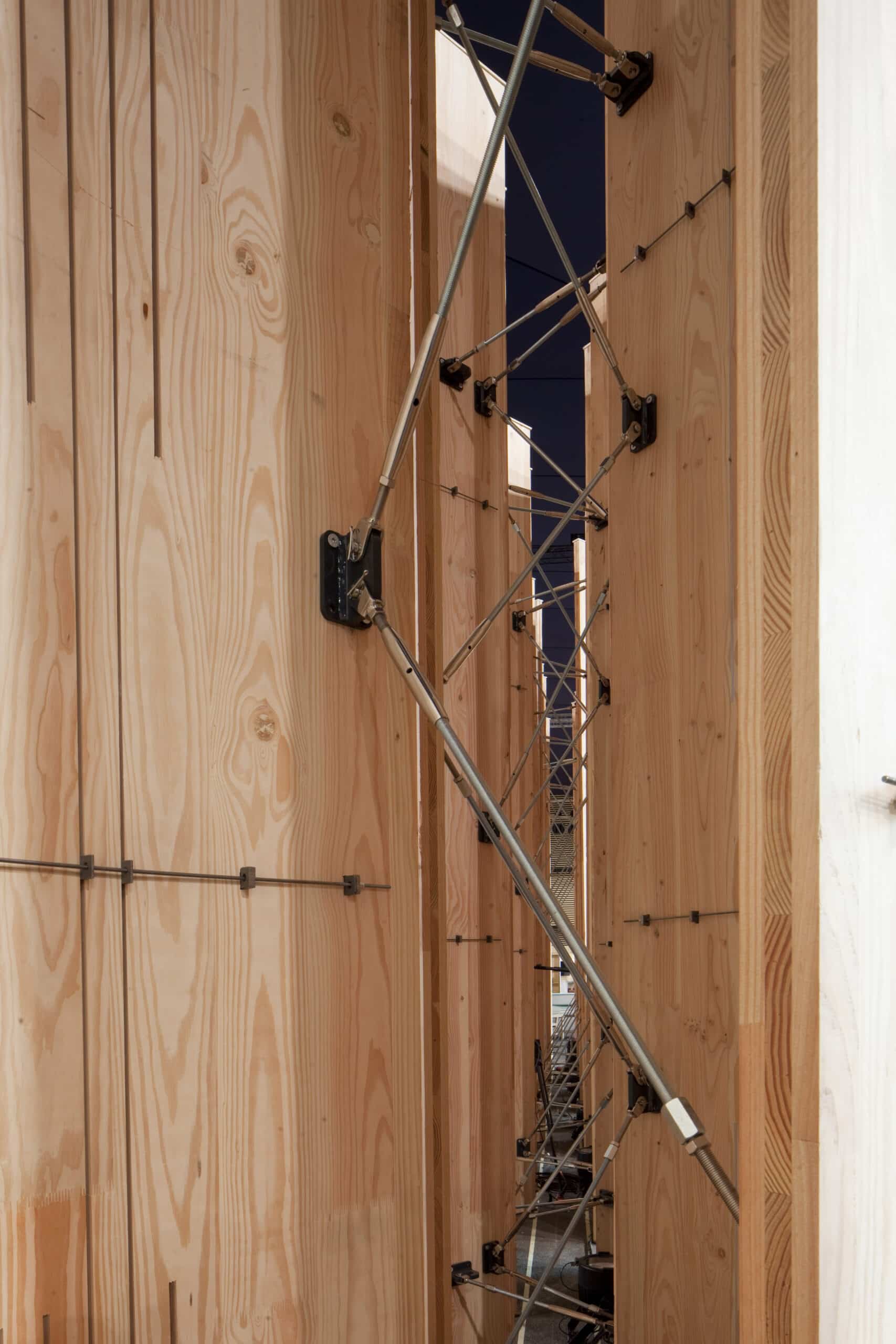

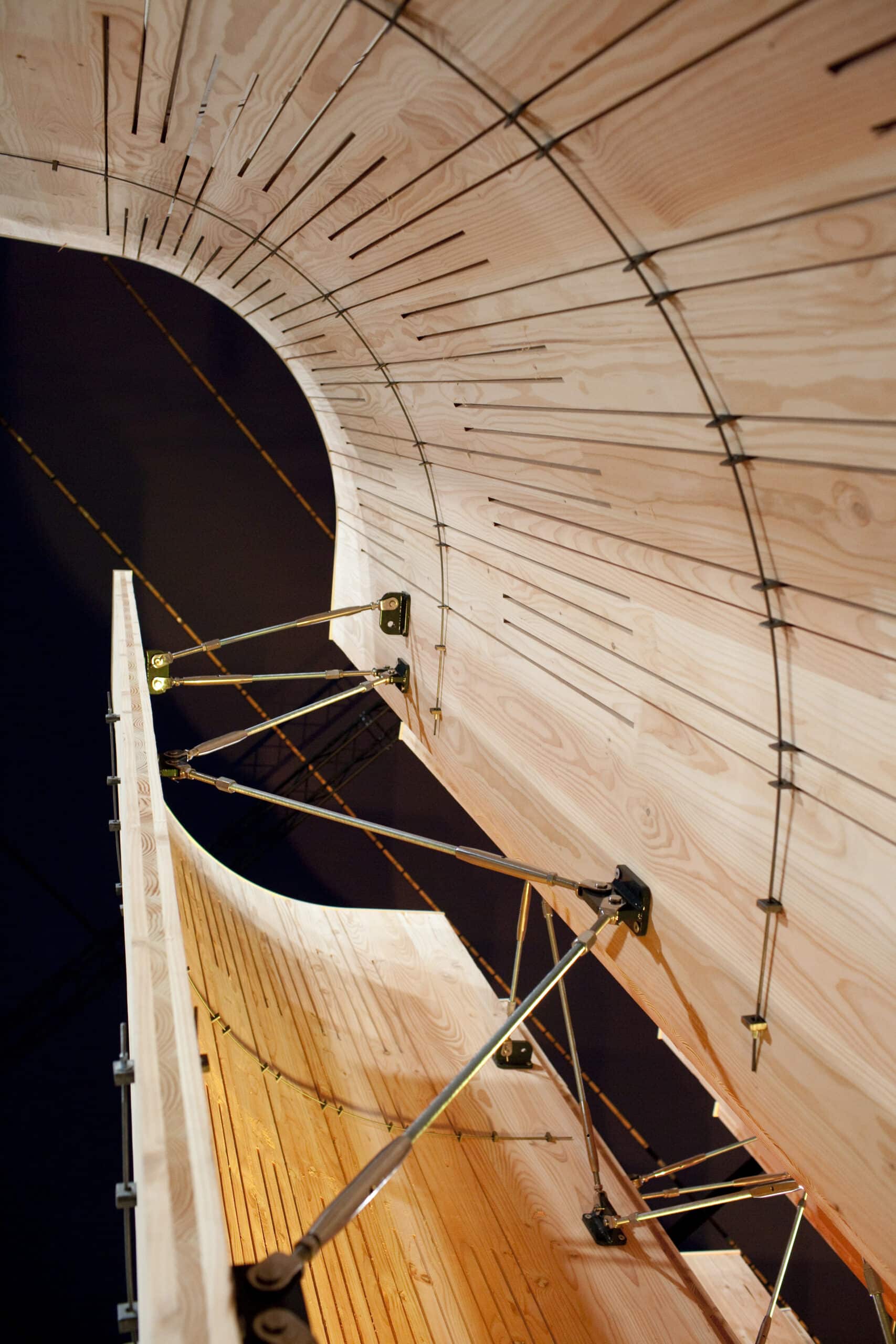

The CLT panels are bent using the lattice hinge technique, developed here on a large scale: a series of longitudinal cuts made by a CNC machine. Besides reducing the overall stiffness of the panel, these thin strips give the structure a slight transparency and good acoustic quality. The curvature of the panels is held by a post-tensioning system developed specifically for the project: custom cast-iron parts are inserted into the slots and tensioned by a steel rod at each end. All these parts can be dismantled so that the panels can be laid flat again for transport.

Mission Type
Global stability study
Location

Grand Palais éphémère, Paris, France

Study
2020
– 2021
Execution
2021
Client
NVBCOM
Contractor
CBS LifteamLaminated Timber Solutions
© Copyrights
Tristan Duchamps

Modelisation

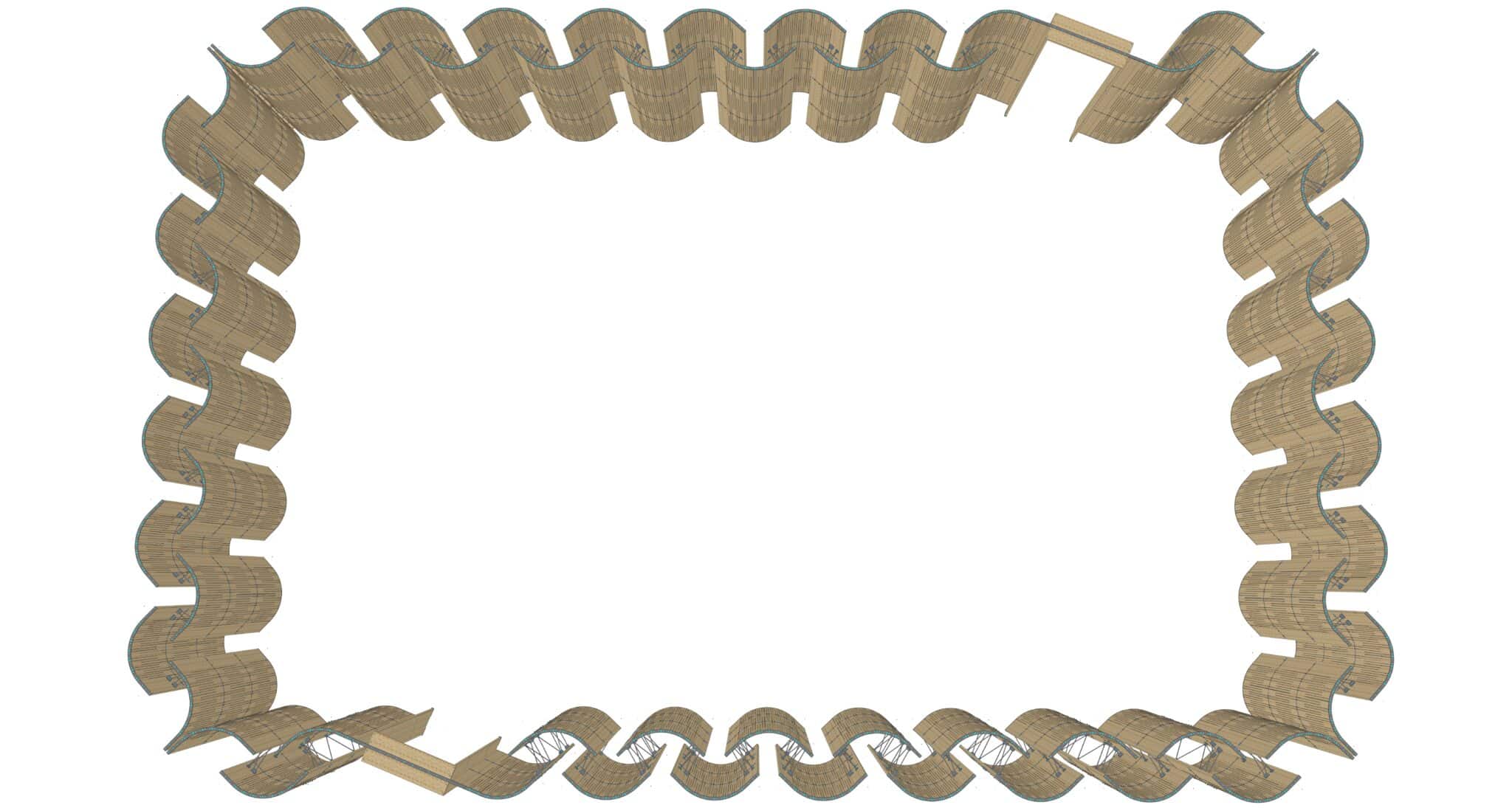

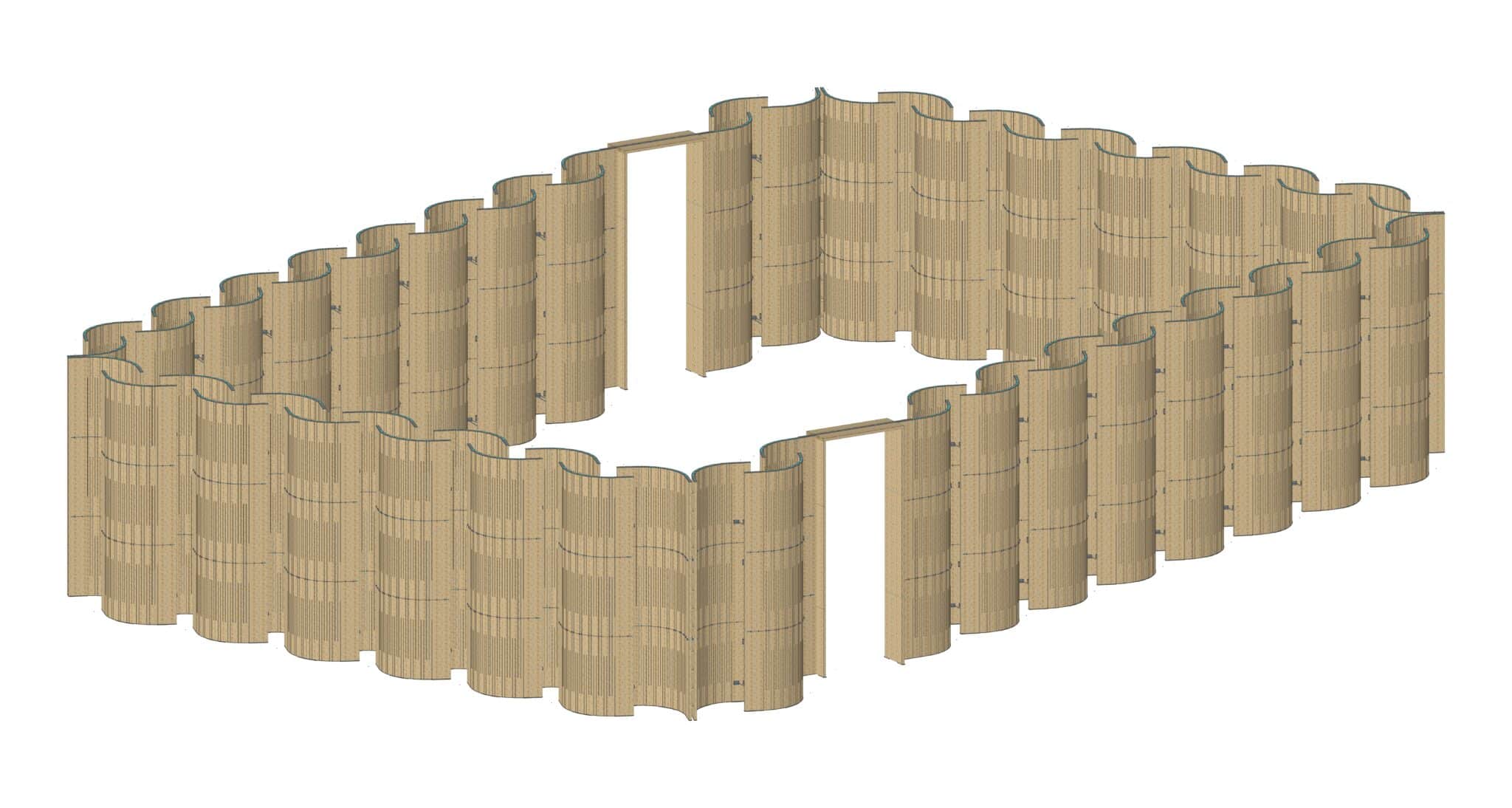

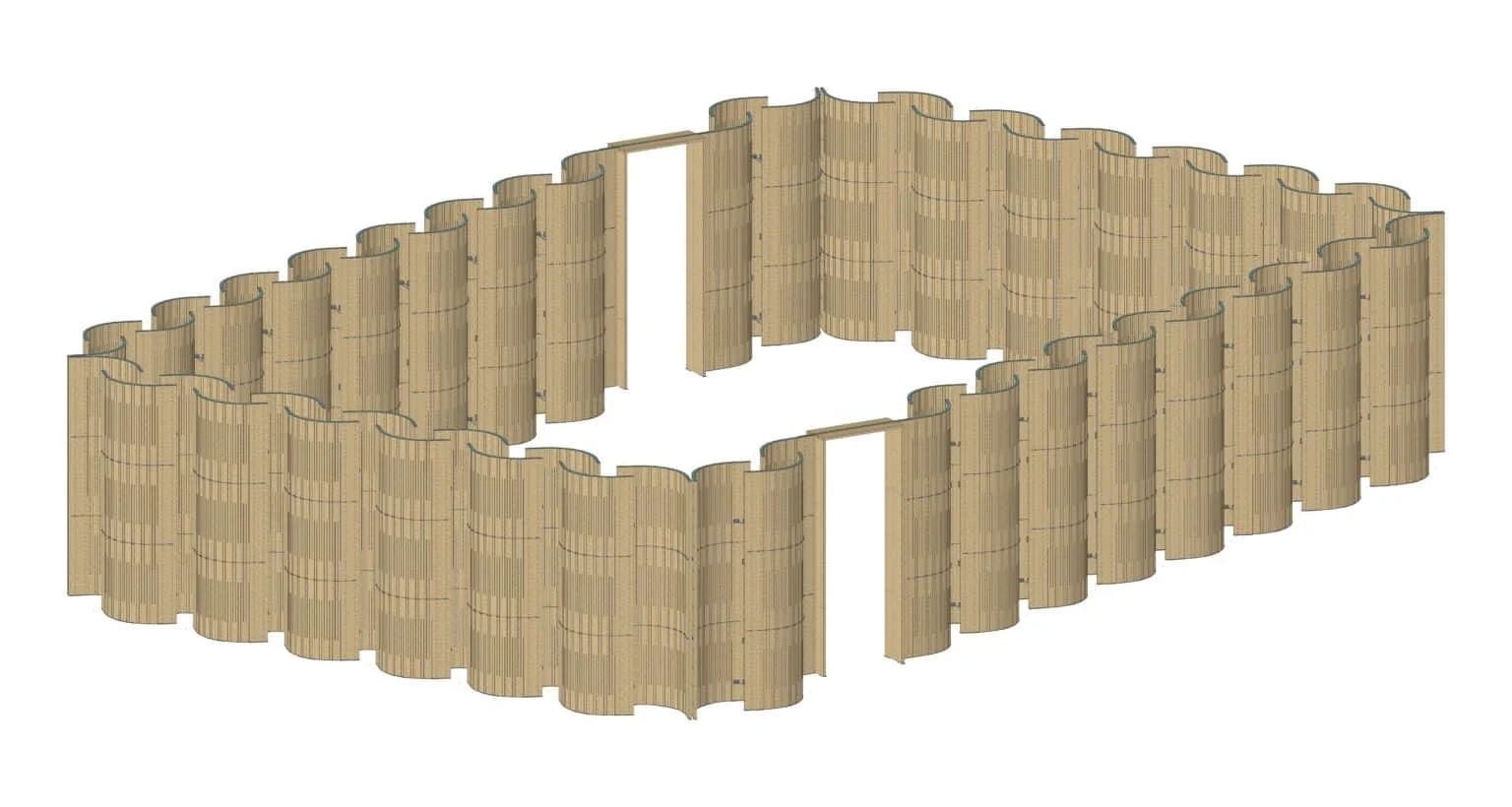

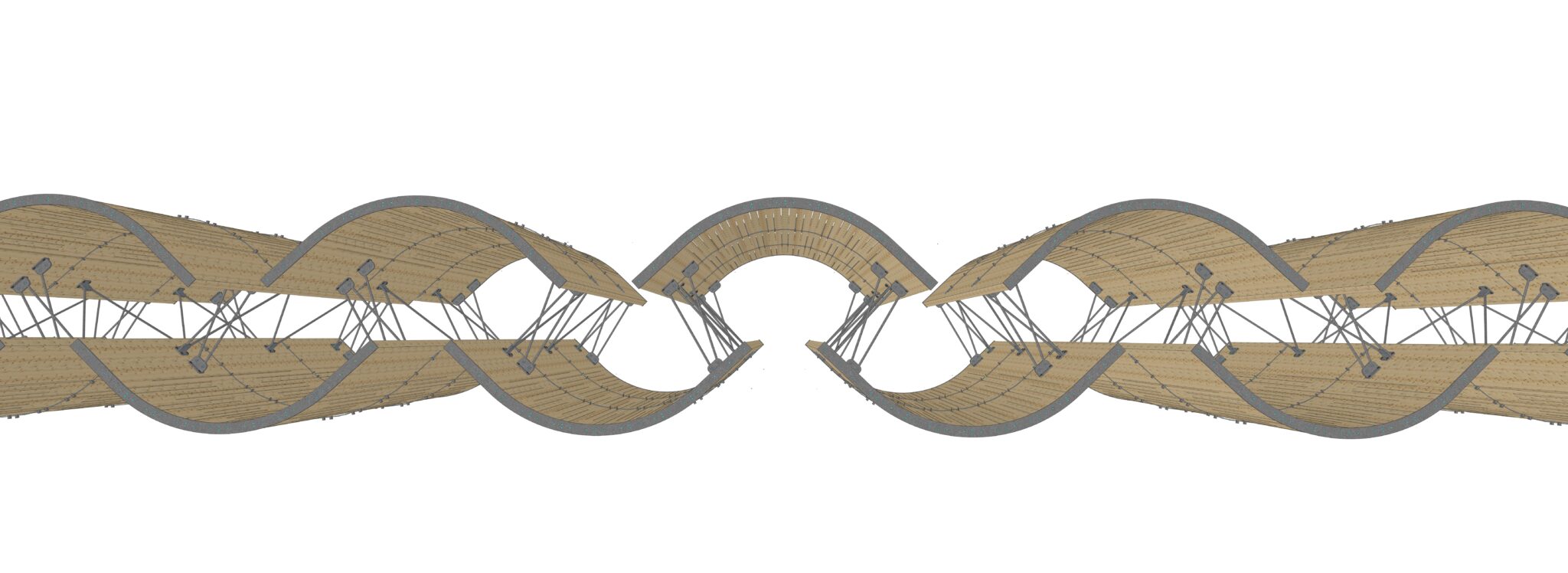

3D model of Ephemeral auditorium, cultural building in Paris, France
3D model of Ephemeral auditorium, cultural building in Paris, France
3D model of Ephemeral auditorium, cultural building in Paris, France
