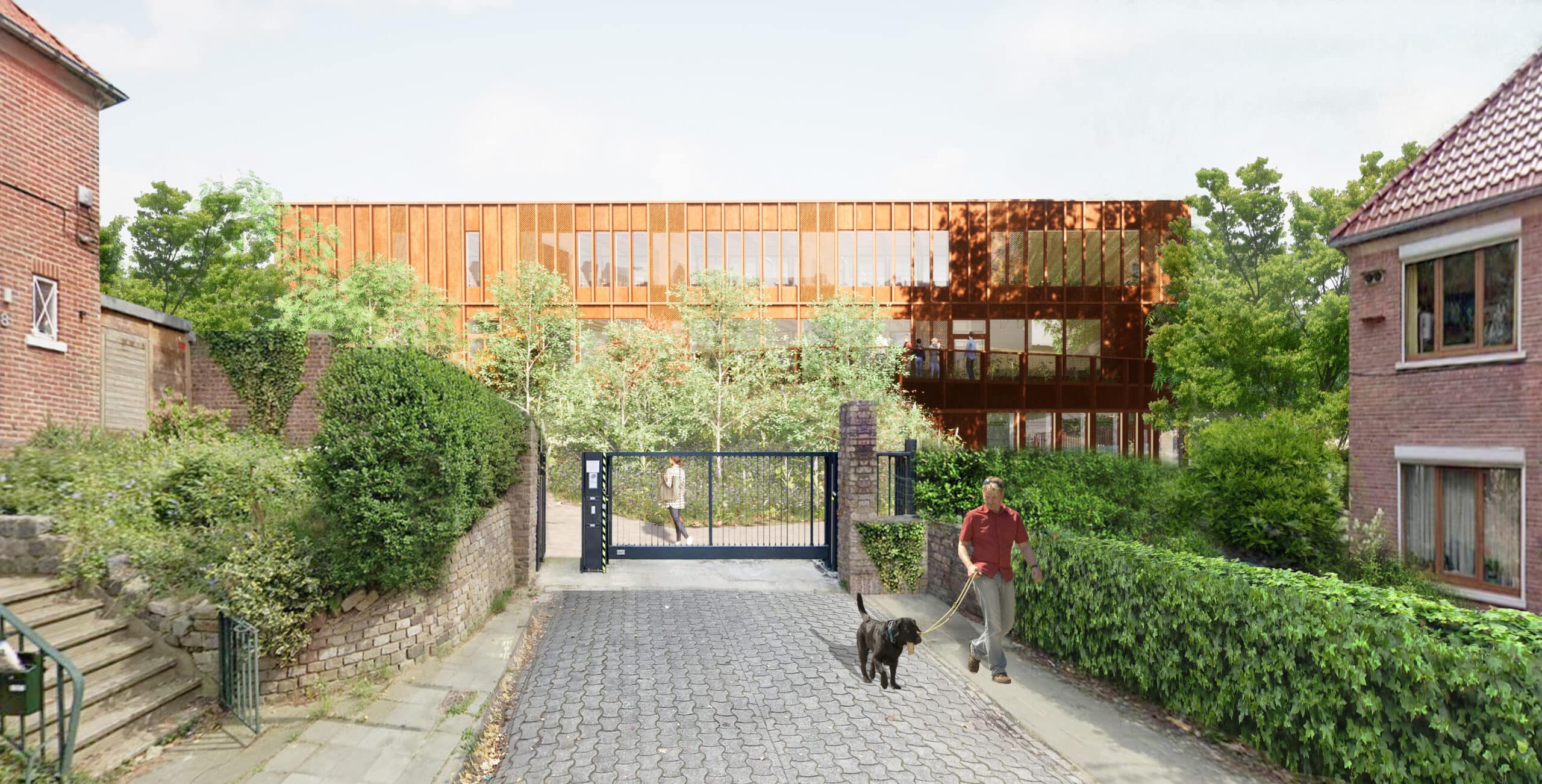

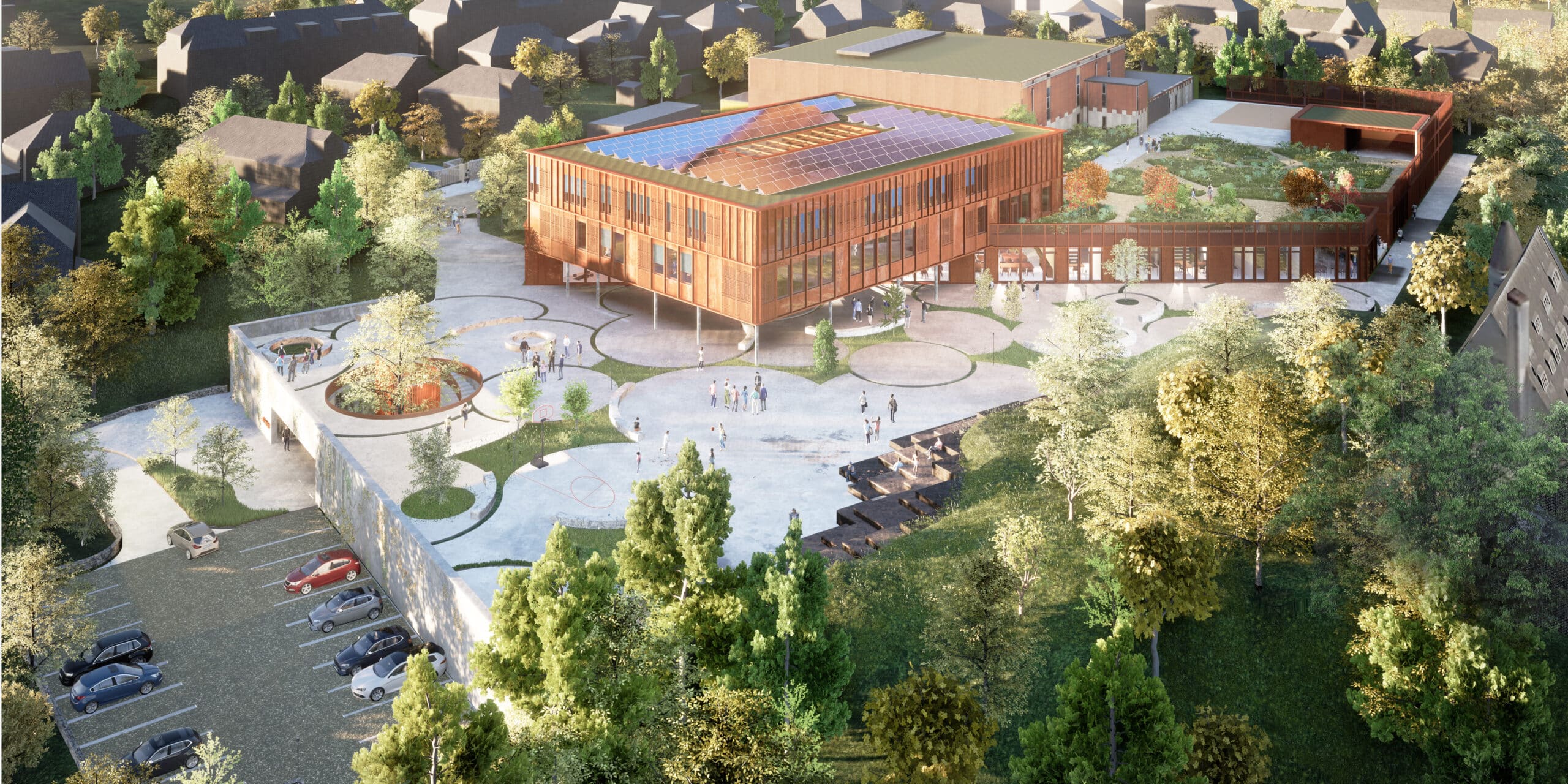

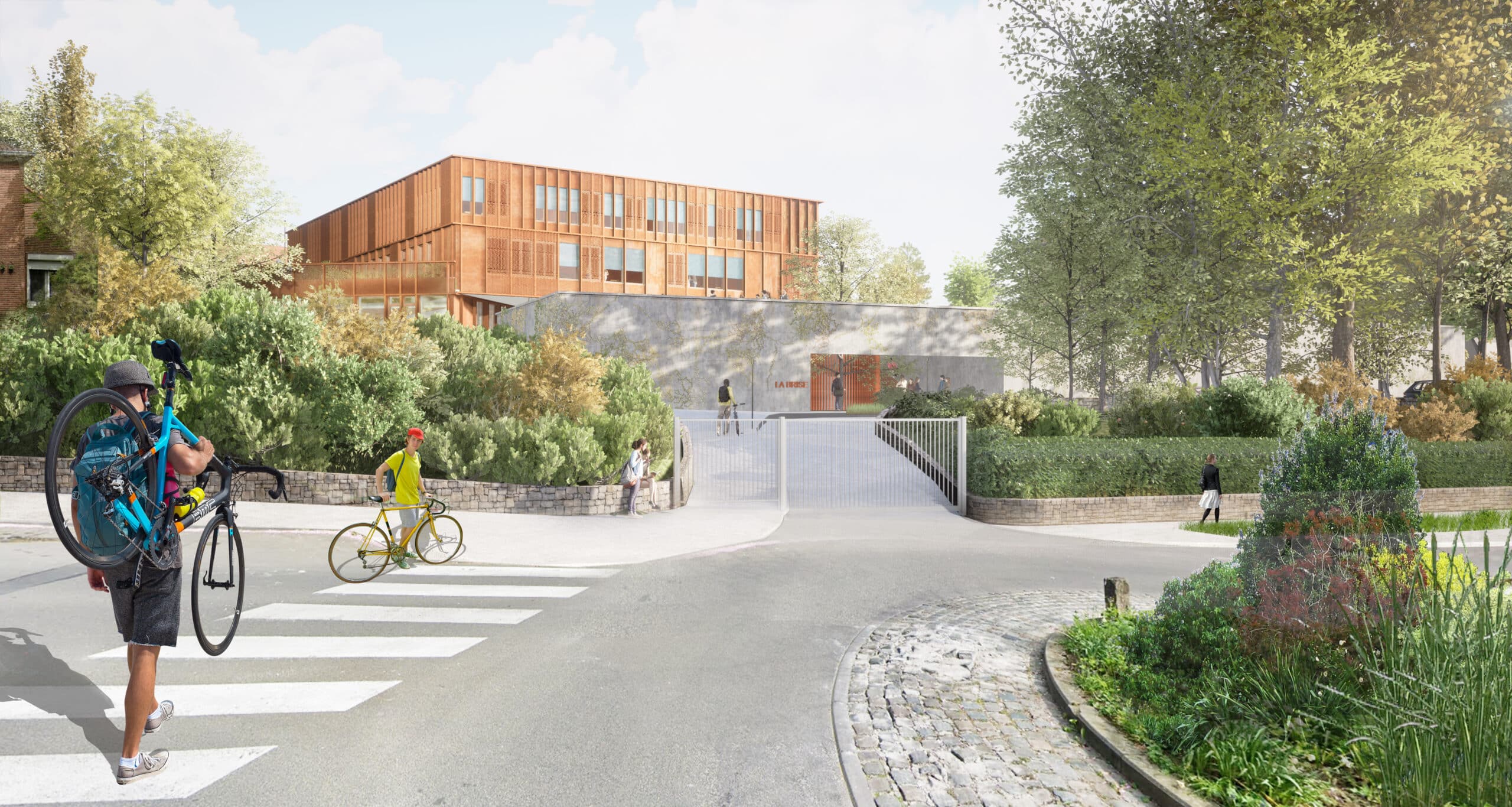

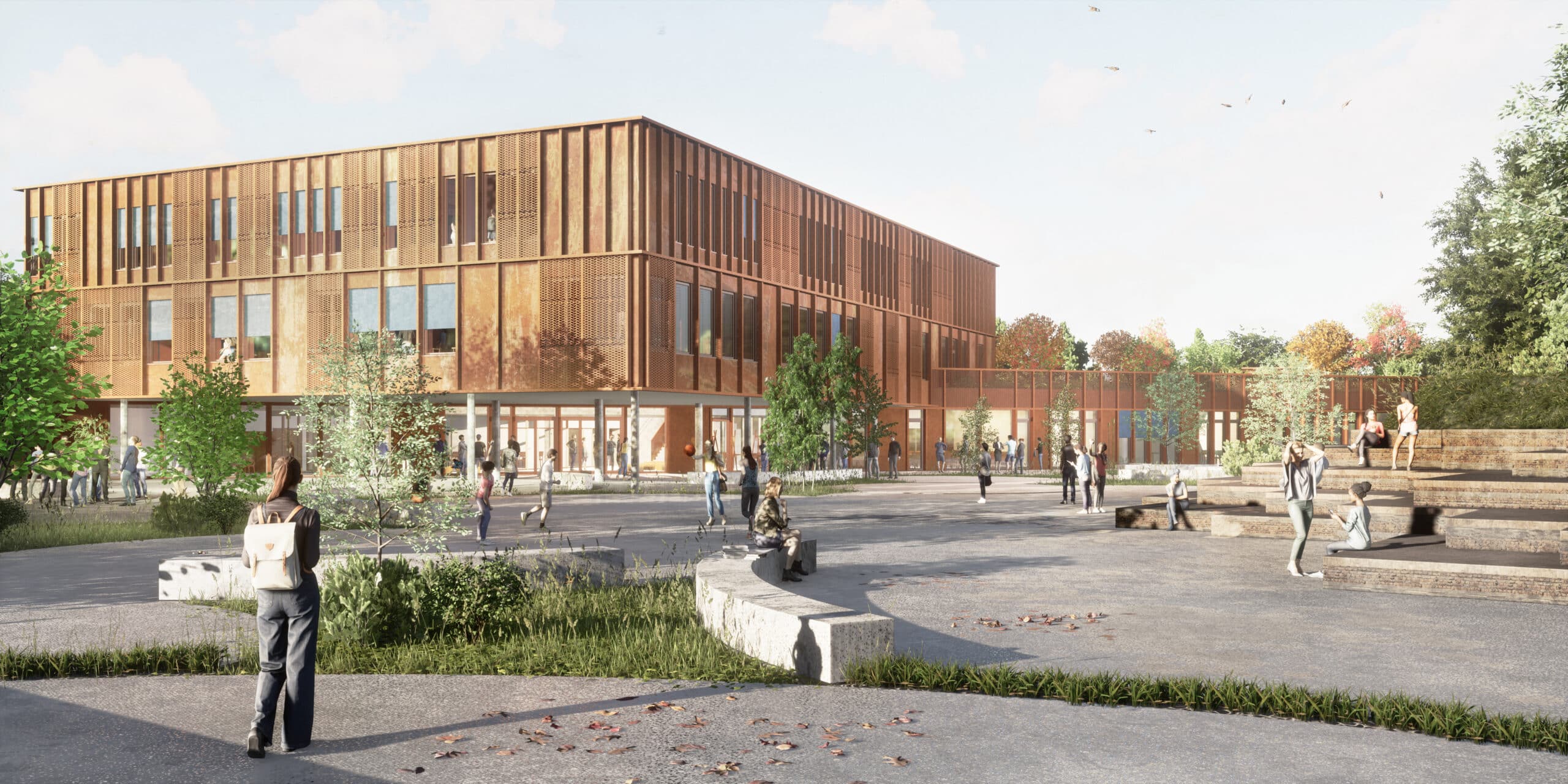

Photo of Brise School, school in Brussels, Belgium
Photo of Brise School, school in Brussels, Belgium

19.072

Brise School

Belgium

Brussels

0 sqm
0 T. C02 Stored

Context

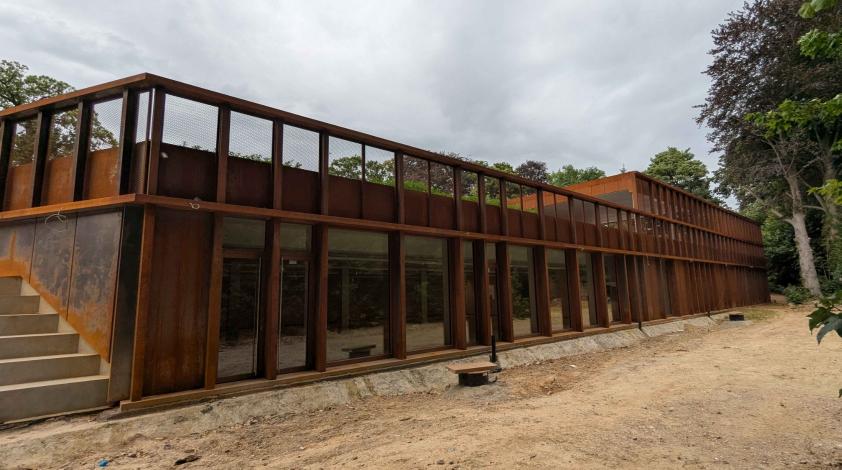

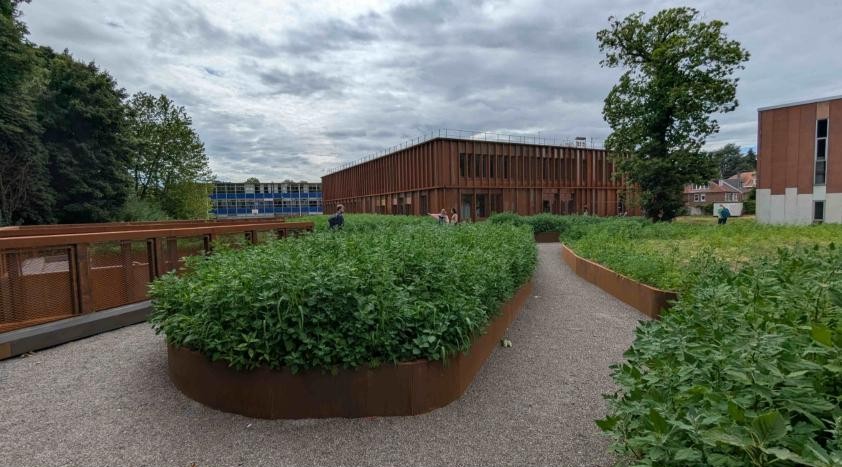

With this project, La Brise school in Boitsfort is completely renewing its ageing buildings. The classroom and administrative buildings will be dismantled and replaced by a new, contemporary volume: a two-storey timber building housing the classrooms, set on top of a semi-buried concrete ground floor.

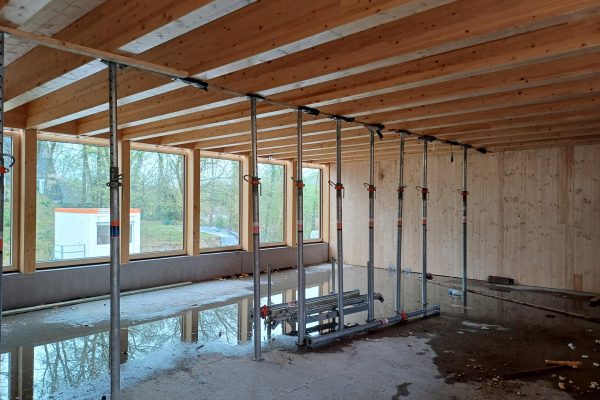

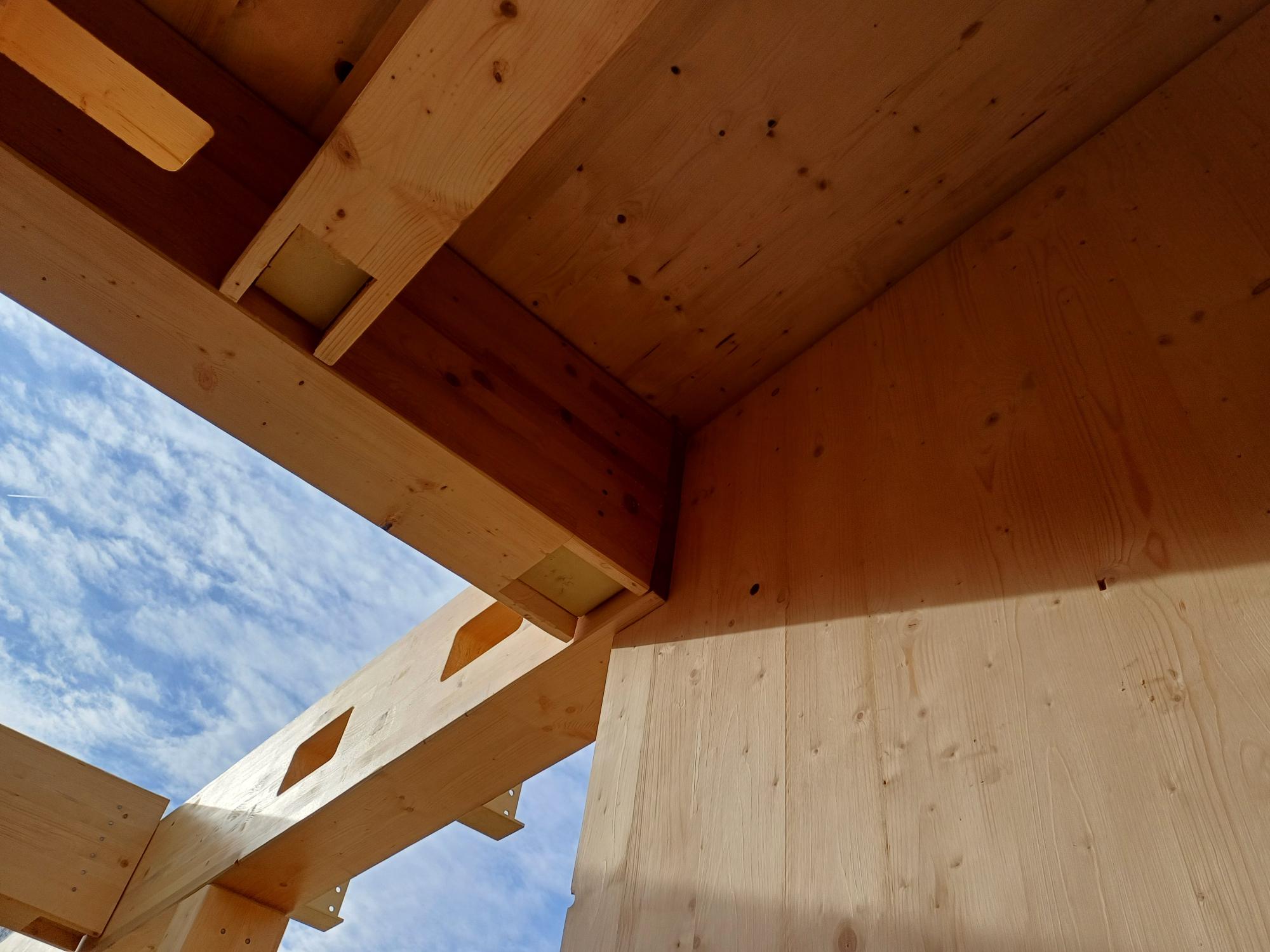

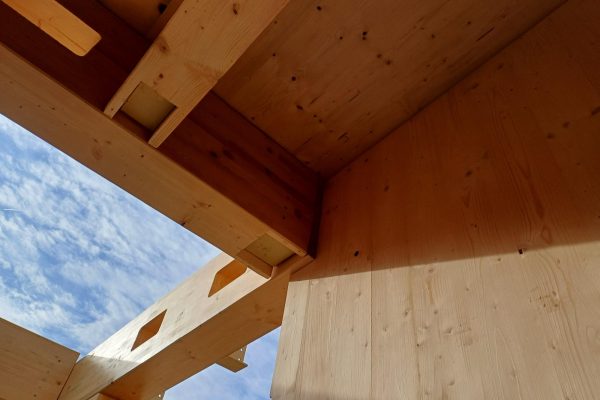

The classroom wing uses a glulam post-and-beam structure with ribbed CLT floors.
Prefabrication is pushed to the maximum throughout the project to shorten the time on site.

Particularities

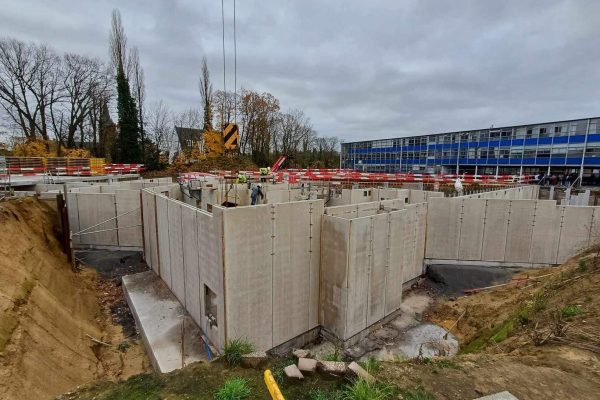

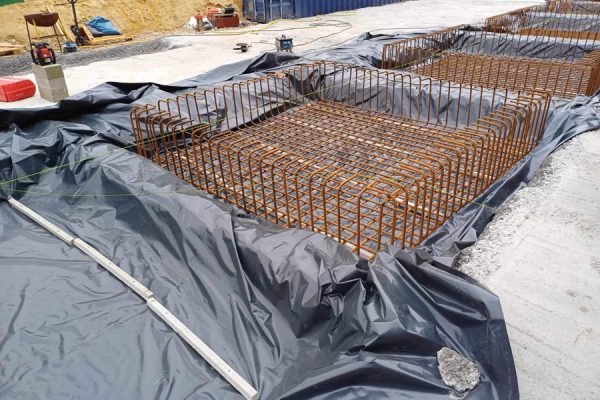

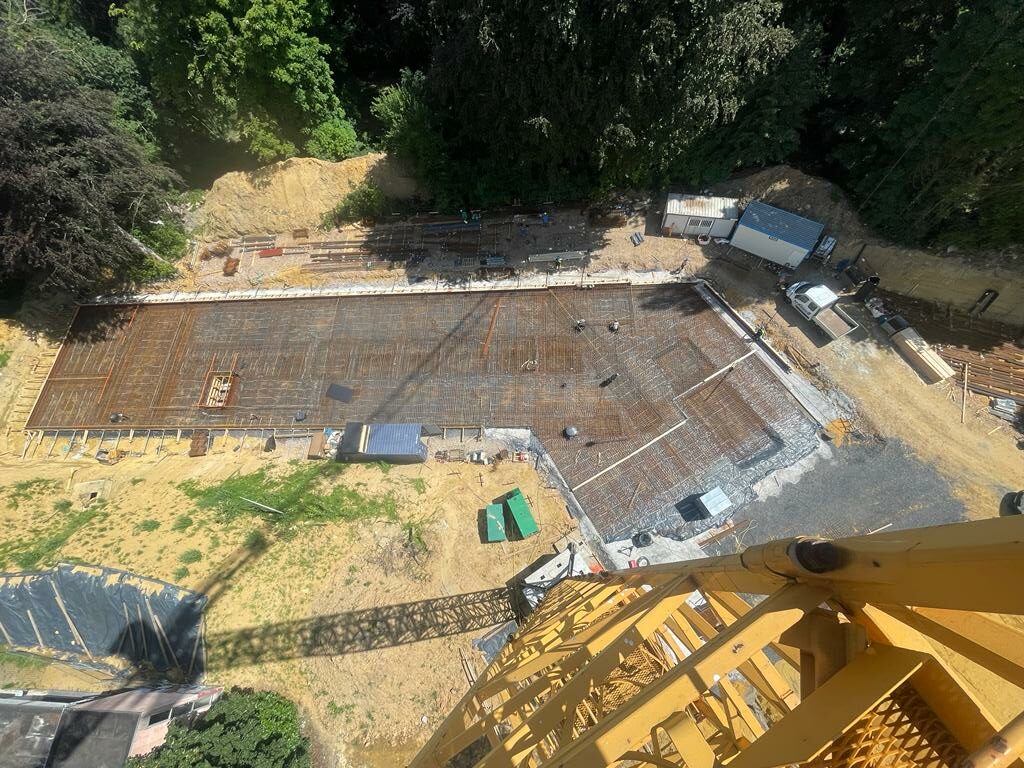

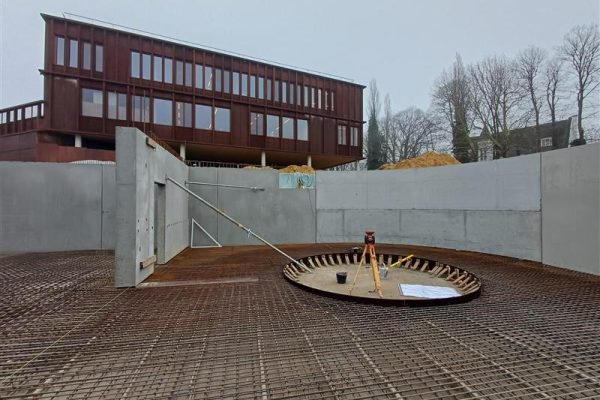

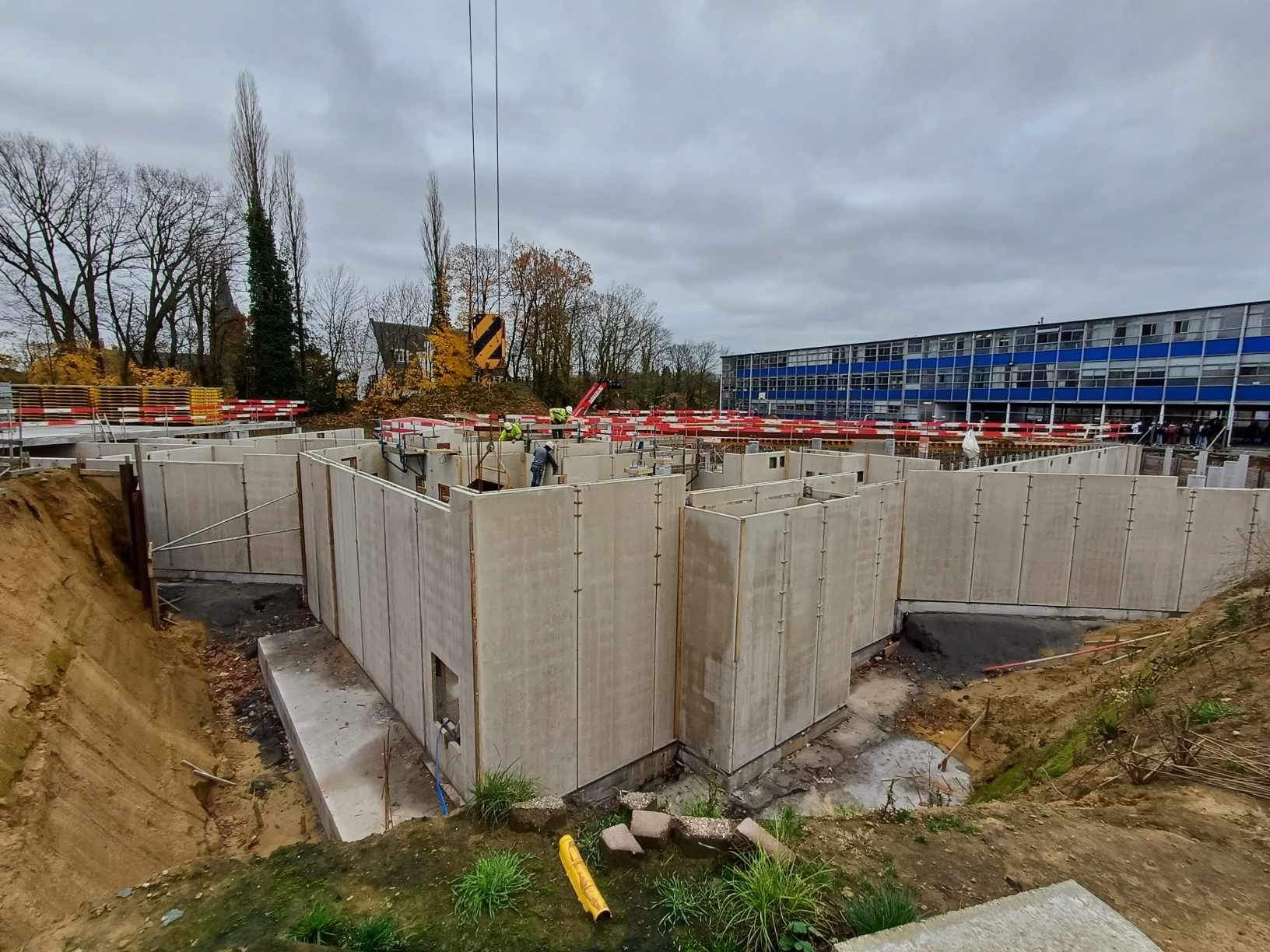

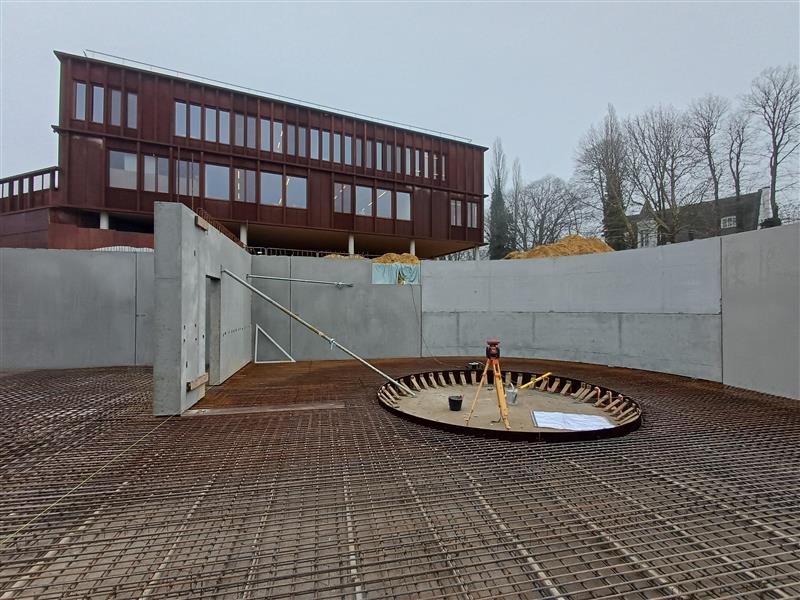

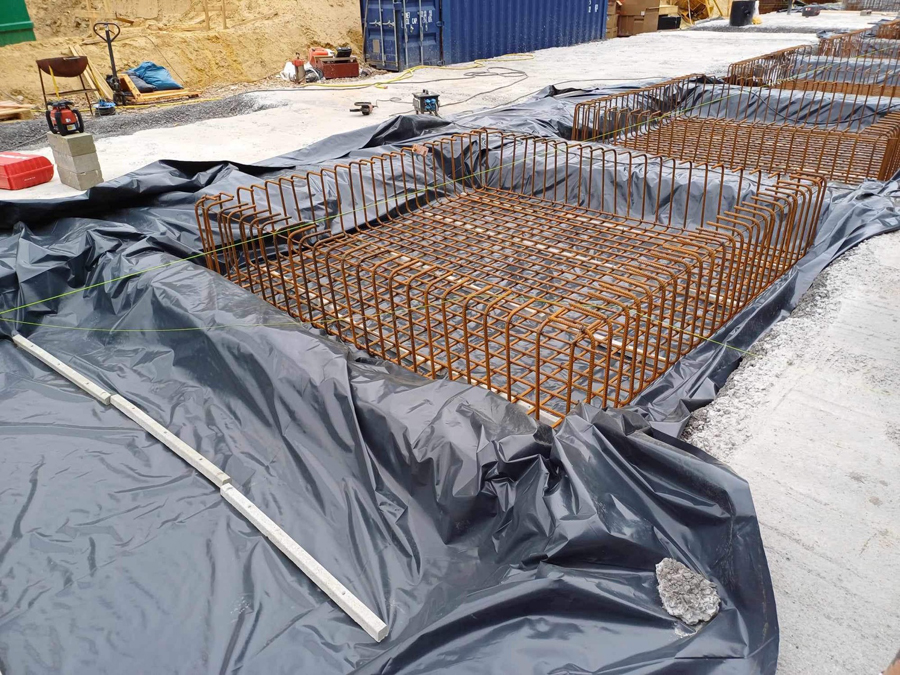

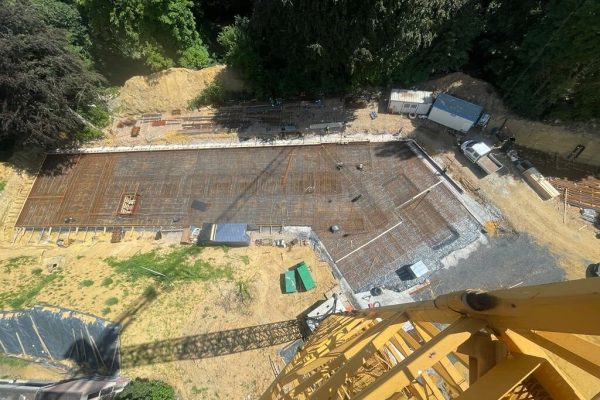

The concrete ground-floor structure rests on a raft with local thickenings. Precast twin walls are used for the walls, and hollow-core slabs for the floors wherever possible. In the central zone, where the structure is more open, the slab bears directly on the columns and works as a flat slab.

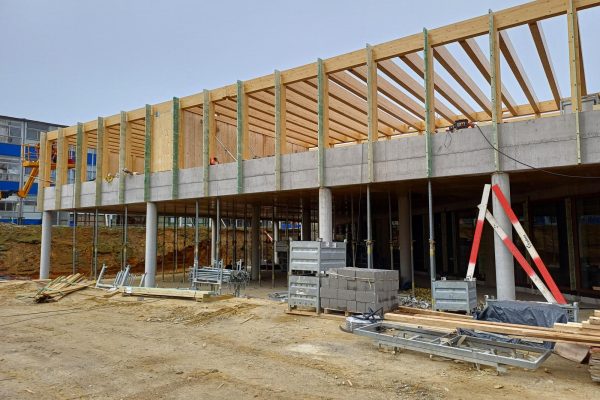

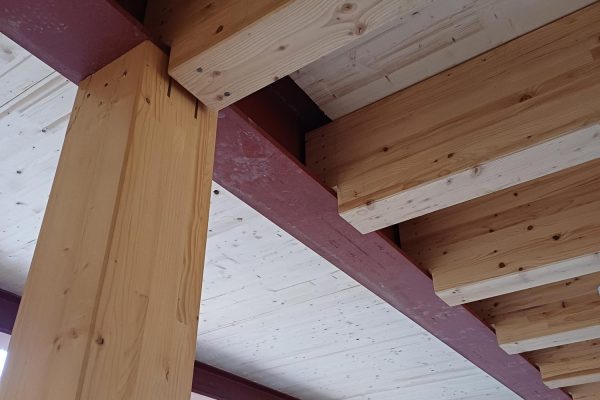

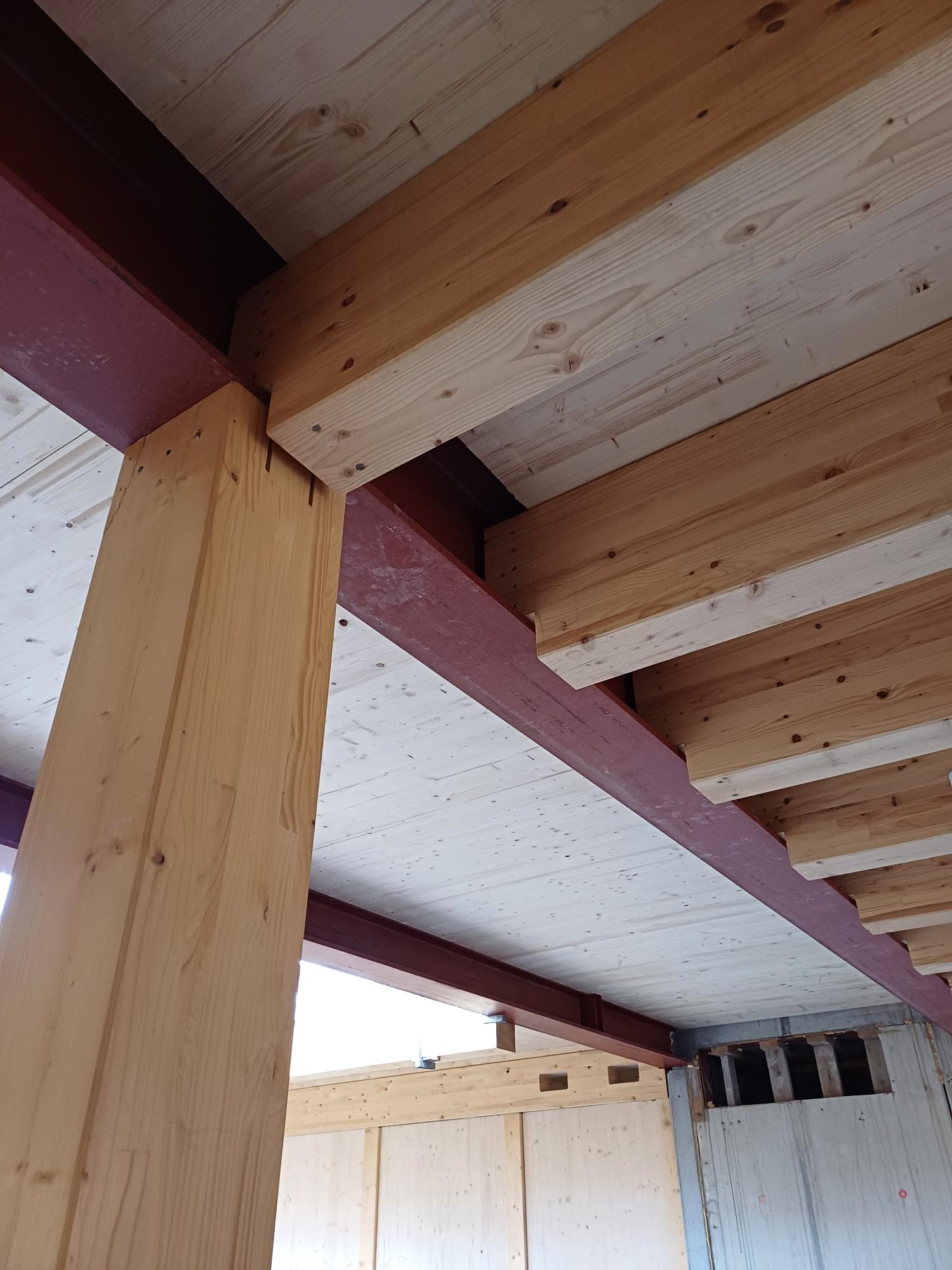

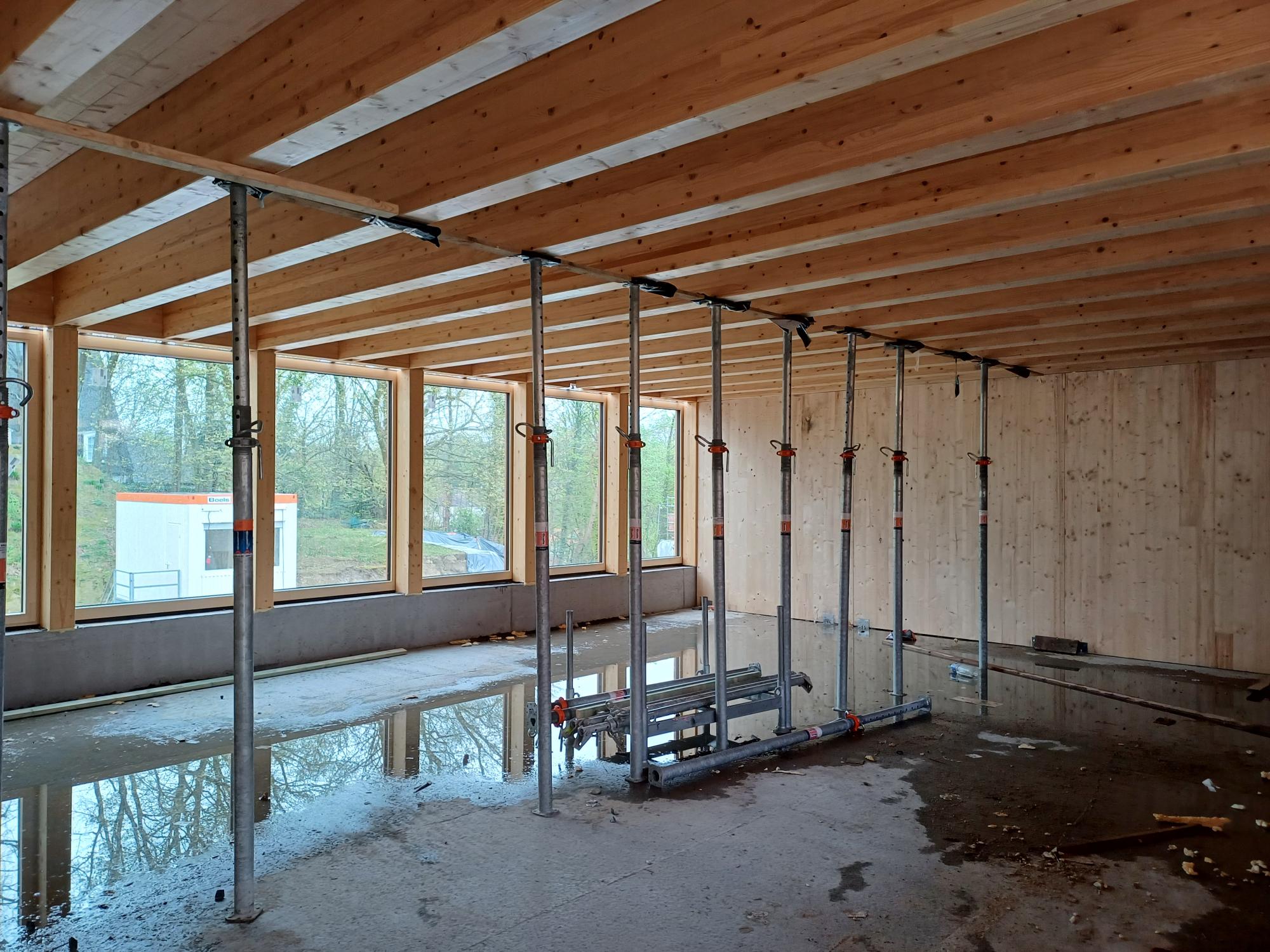

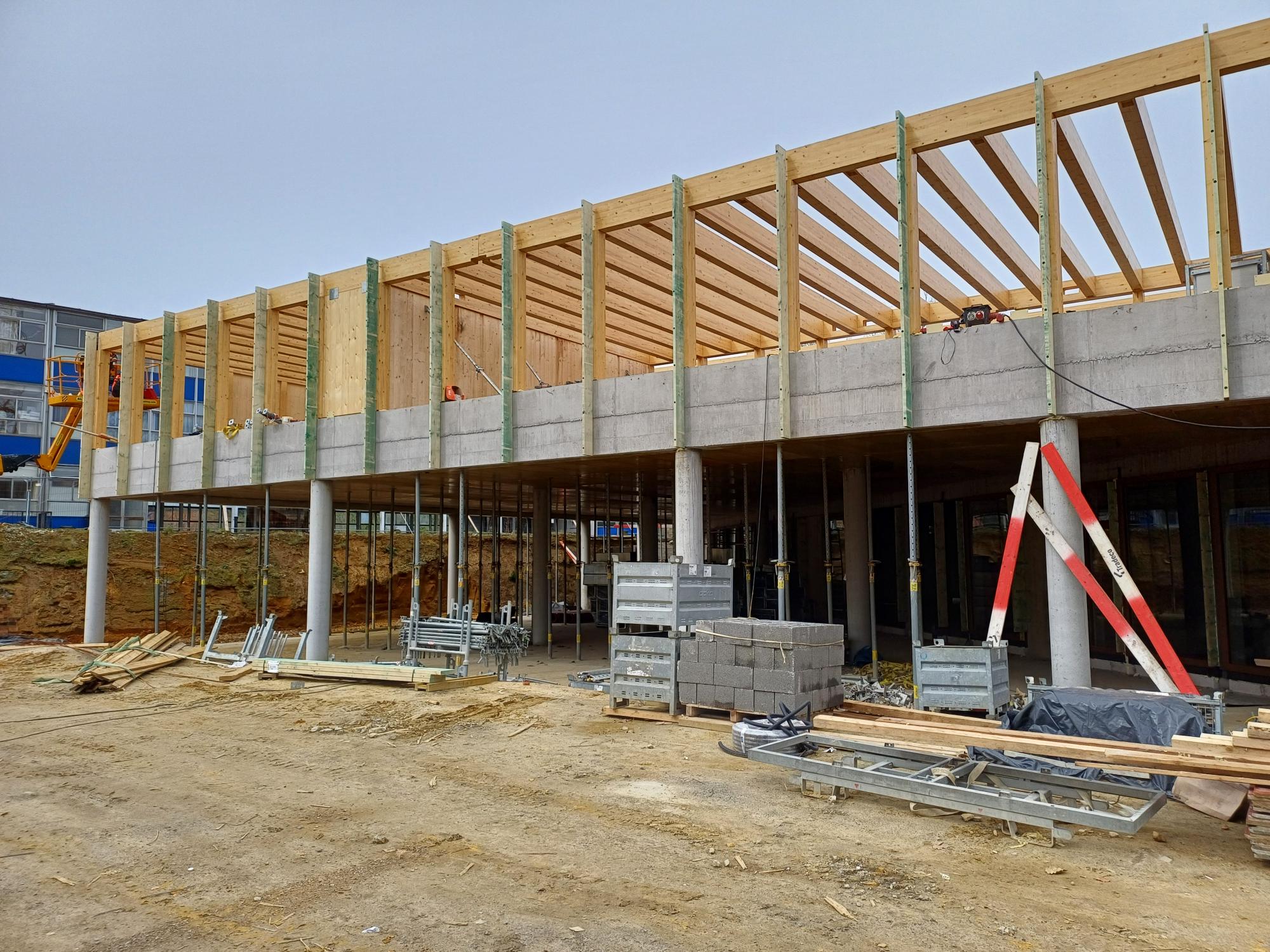

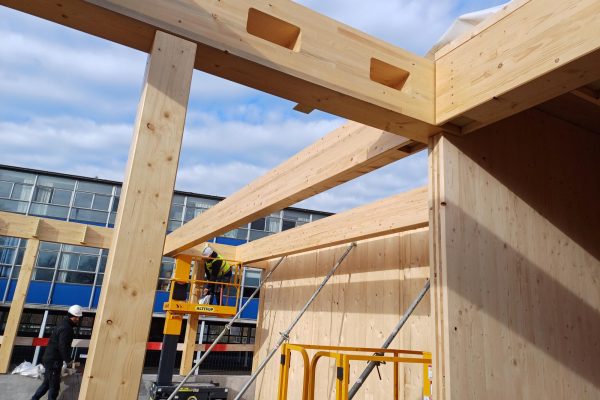

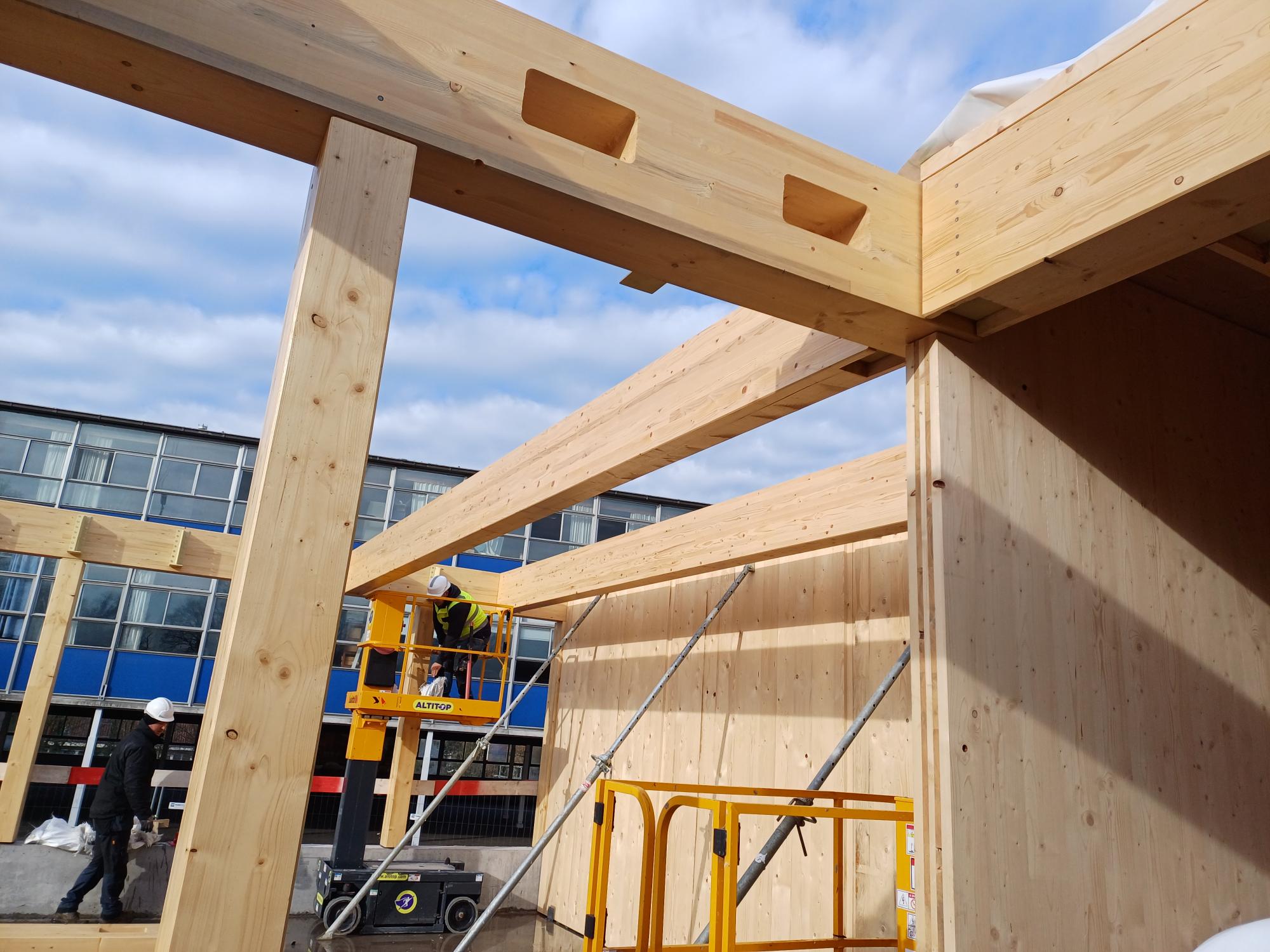

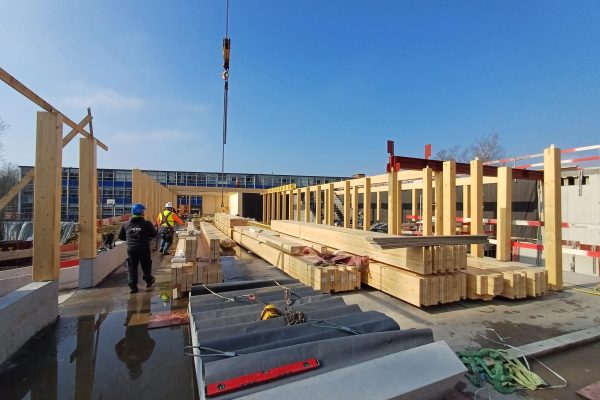

The timber structure rests on columns carrying glulam beams, on which the ribbed CLT floors are placed.

Mission Type
Global stability study
Location

Rue du Pinson, 1170 Watermael-Boitsfort

Study
2019
– 2022
Execution
2022
–2023
Architect
R2D2 architecture s.a.
Client
Fédération Wallonie Bruxelles
Contractor
Tradeco
© Copyrights
DOOM

Modelisation

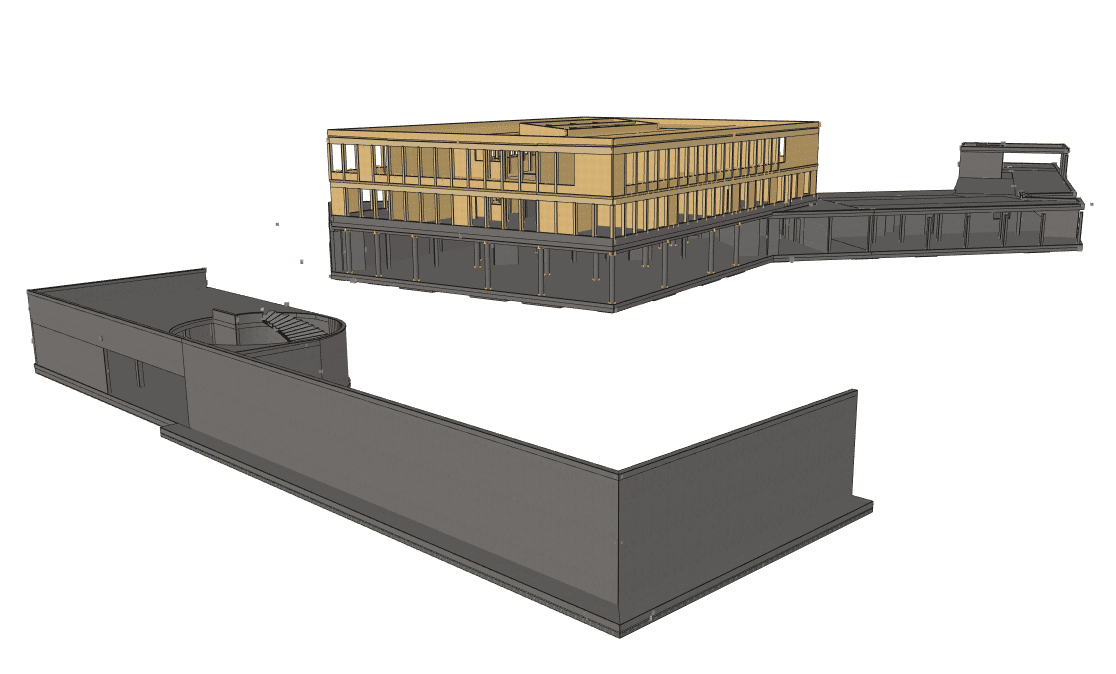

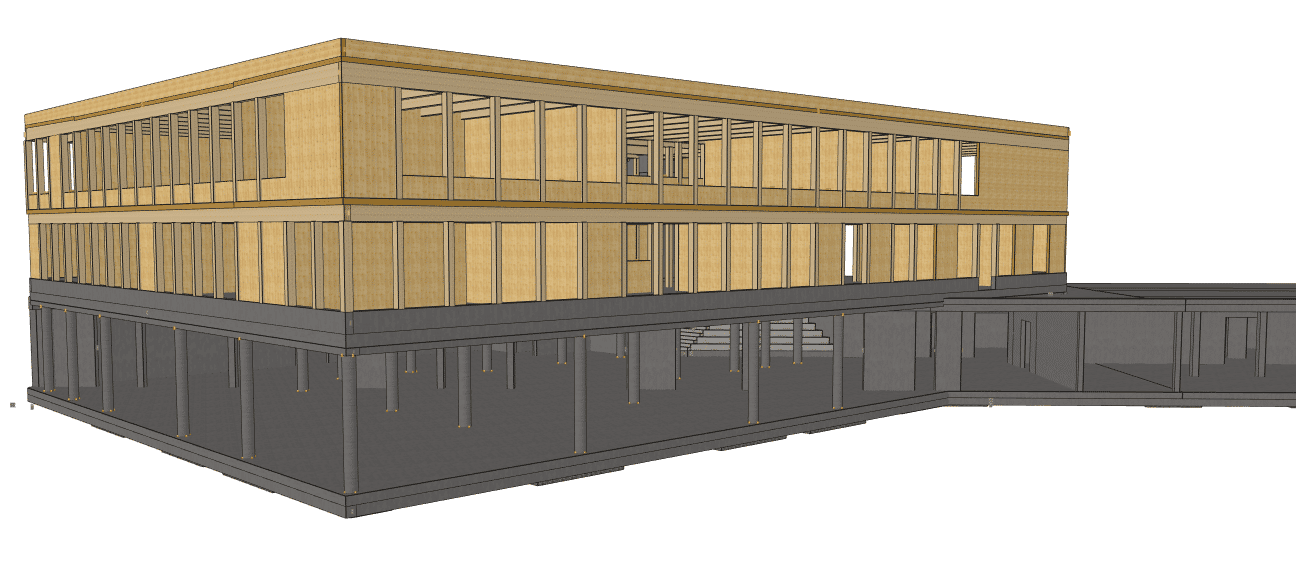

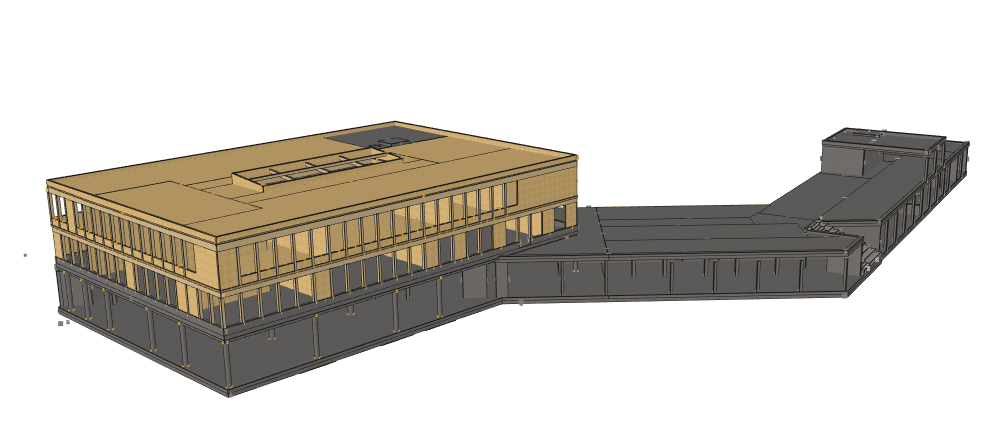

3D model of Brise School, school in Brussels, Belgium
3D model of Brise School, school in Brussels, Belgium
3D model of Brise School, school in Brussels, Belgium
3D model of Brise School, school in Brussels, Belgium

Construction site

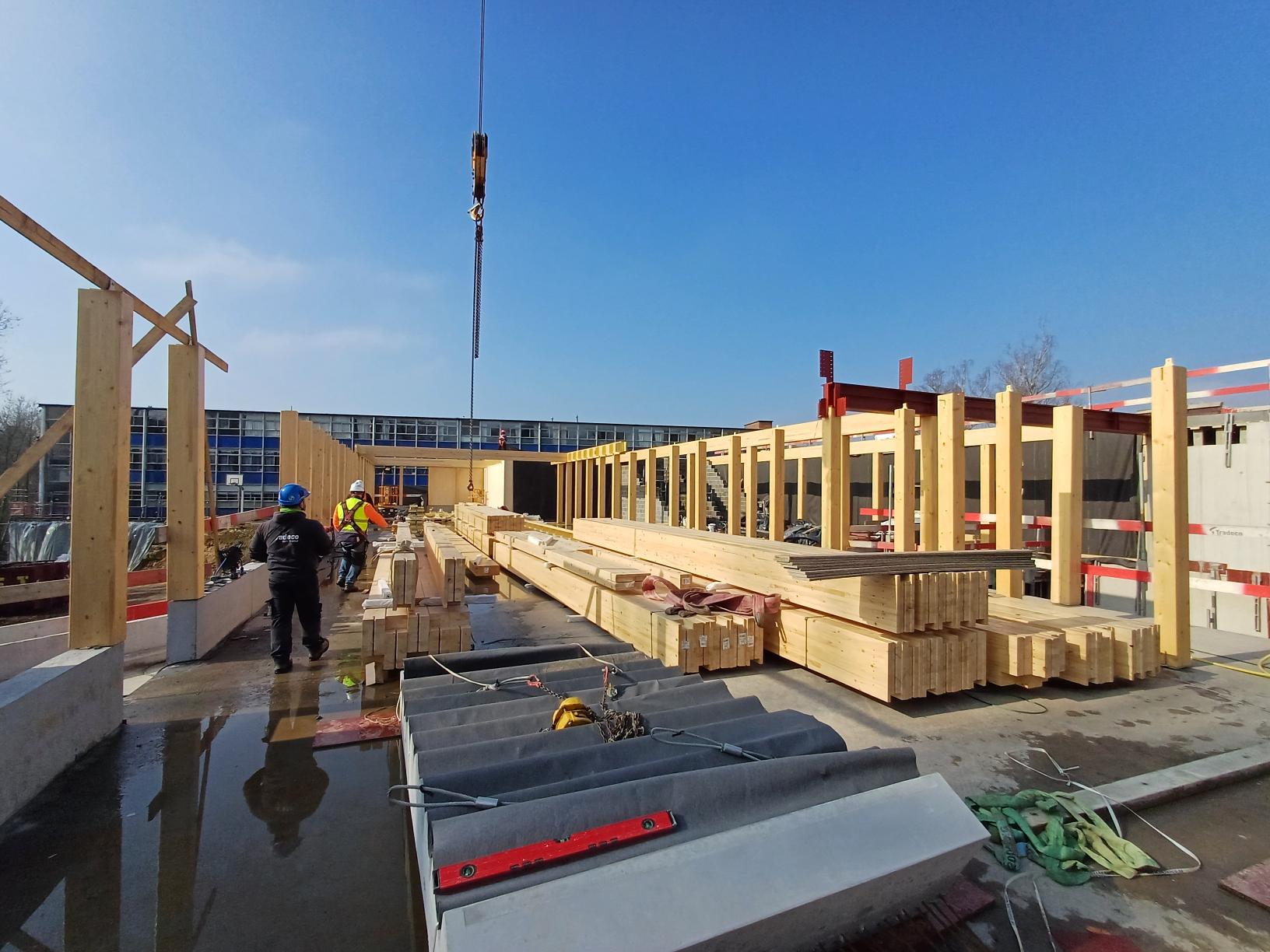

Construction site of Brise School, school in Brussels, Belgium
Construction site of Brise School, school in Brussels, Belgium
Construction site of Brise School, school in Brussels, Belgium
Construction site of Brise School, school in Brussels, Belgium
Construction site of Brise School, school in Brussels, Belgium
Construction site of Brise School, school in Brussels, Belgium
Construction site of Brise School, school in Brussels, Belgium
Construction site of Brise School, school in Brussels, Belgium
Construction site of Brise School, school in Brussels, Belgium
Construction site of Brise School, school in Brussels, Belgium
Construction site of Brise School, school in Brussels, Belgium
