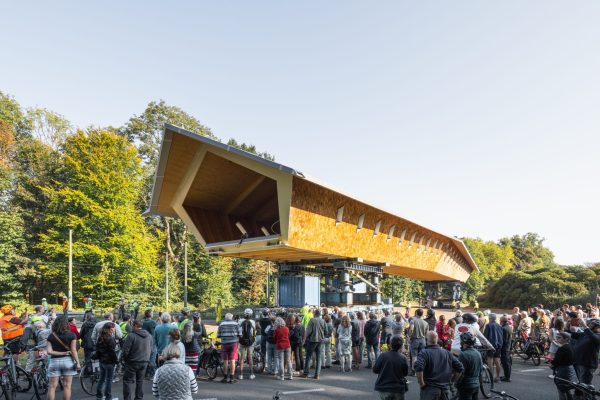

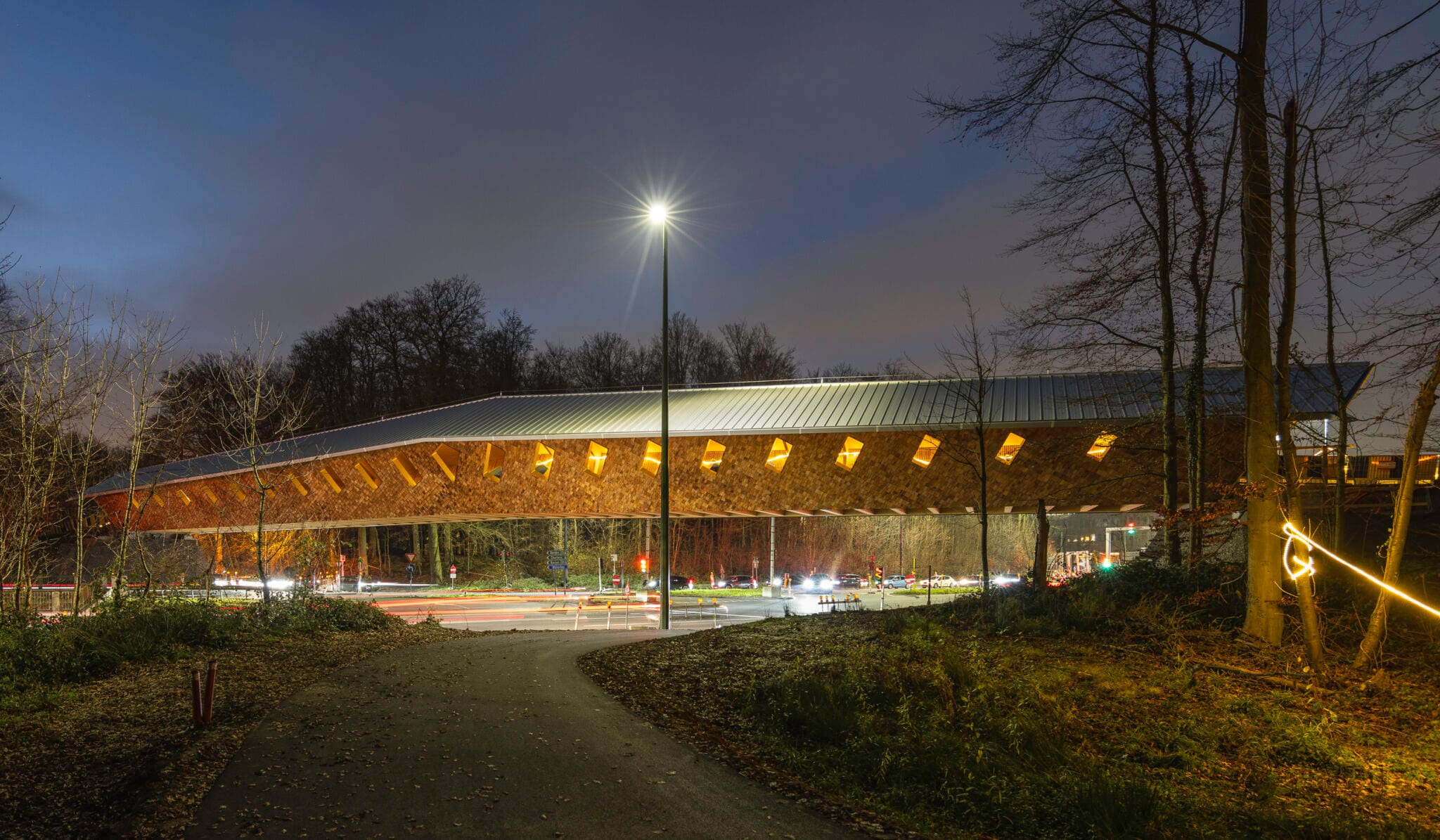

As part of the redevelopment of the eastern section of the R0 ring road around Brussels, a comprehensive set of measures is being implemented to promote sustainable mobility. One of them is a footbridge over the Vier Armen junction in Tervuren, providing cyclists and pedestrians with a direct crossing over the busy traffic lanes. Located in the Sonian Forest, this new timber footbridge is 67.5 m long. Timber was chosen not only for its appearance but also for its structural properties, which were fully exploited in the design.

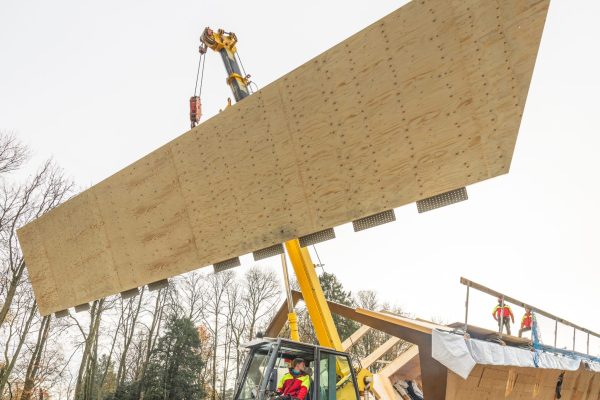

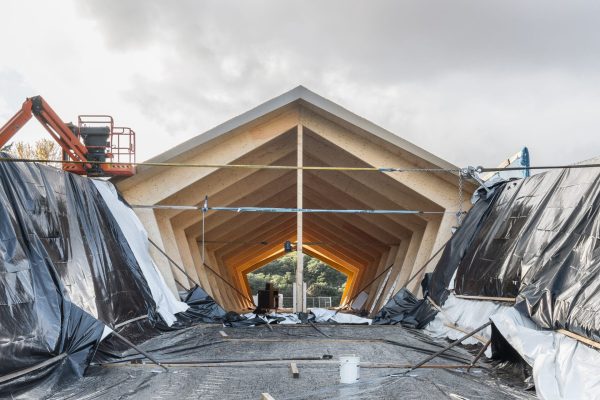

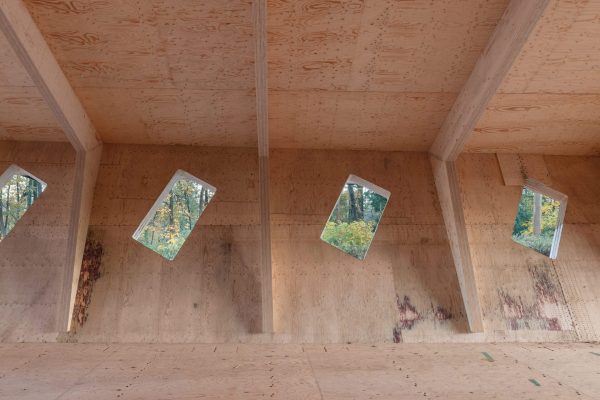

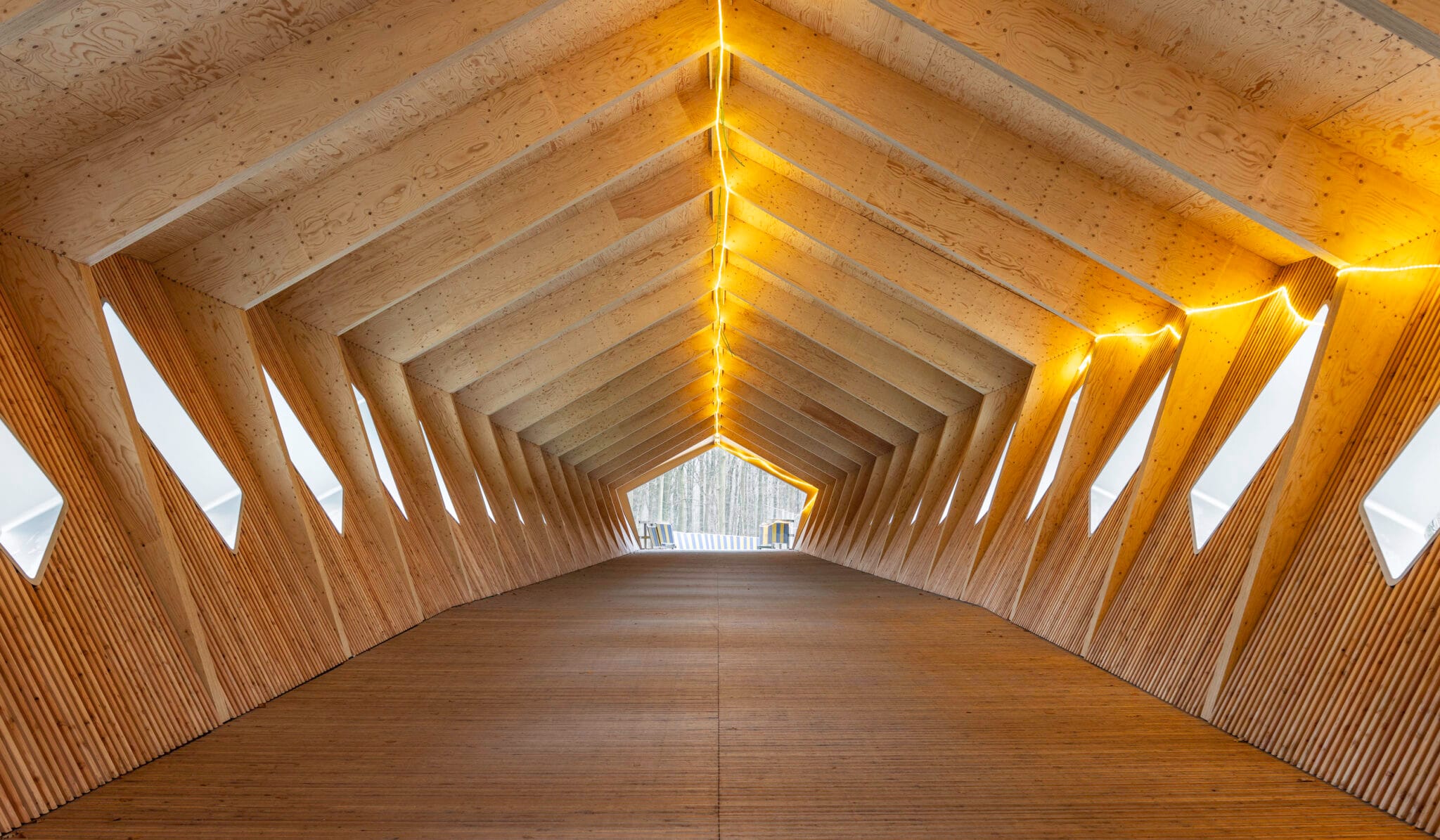

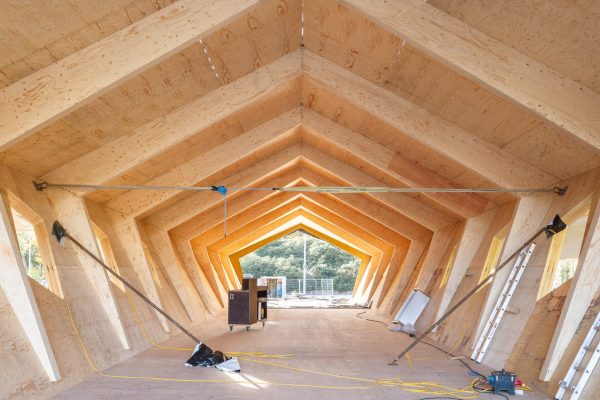

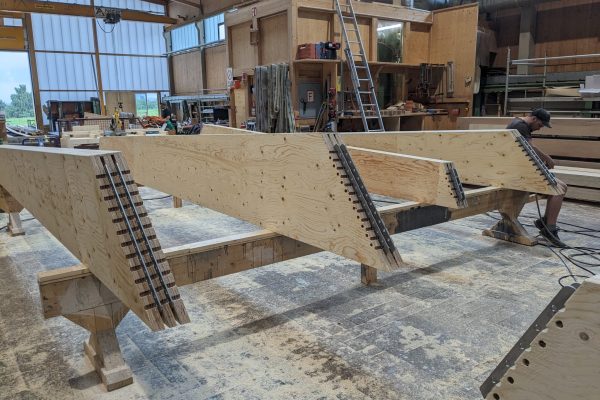

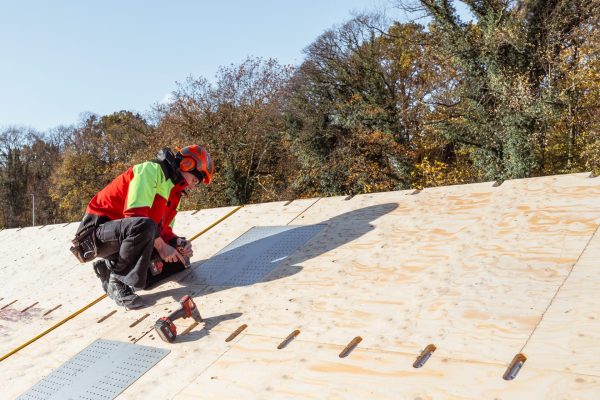

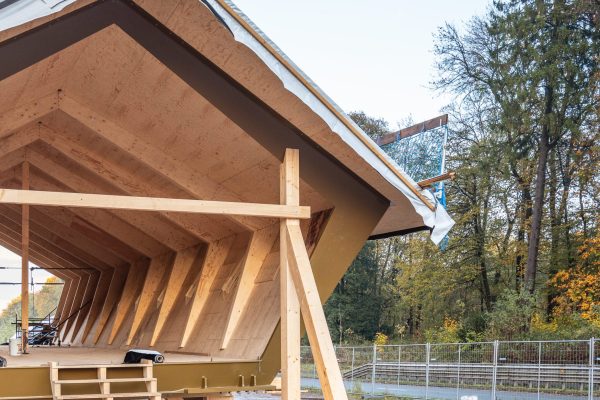

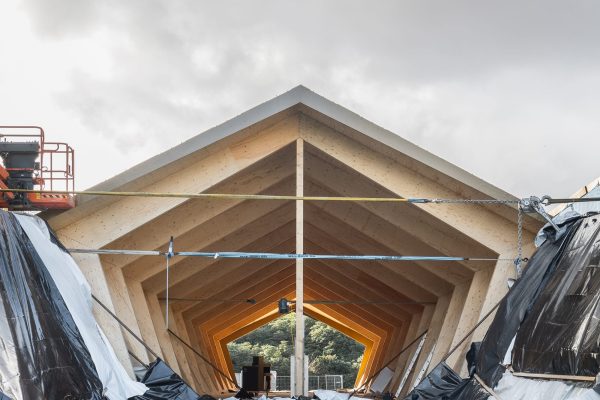

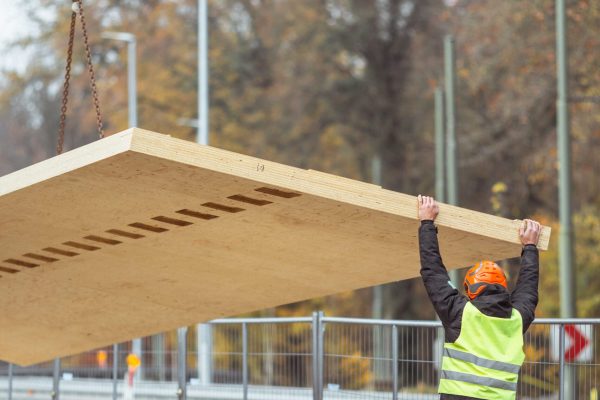

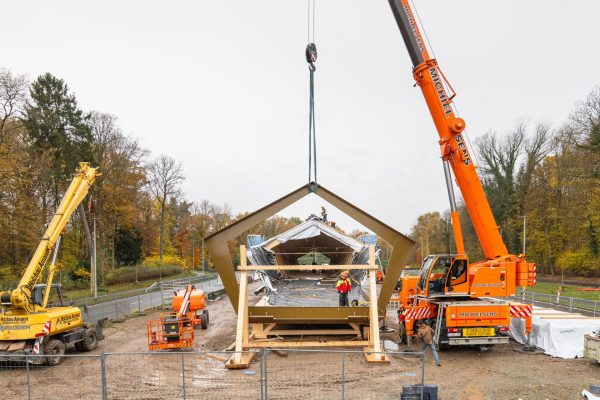

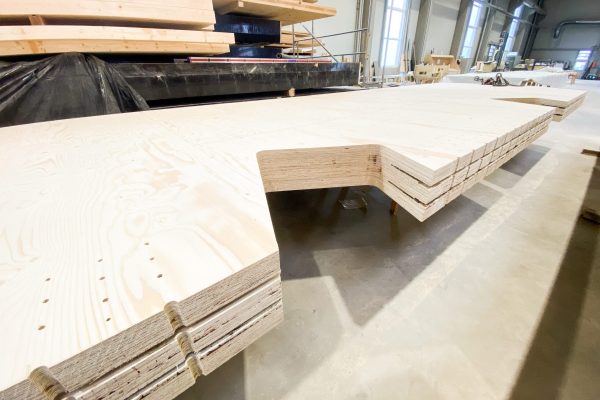

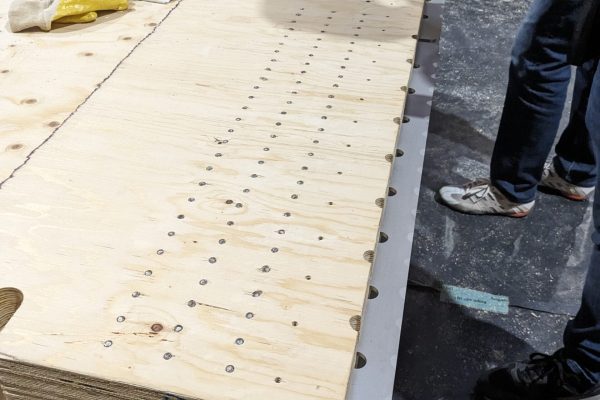

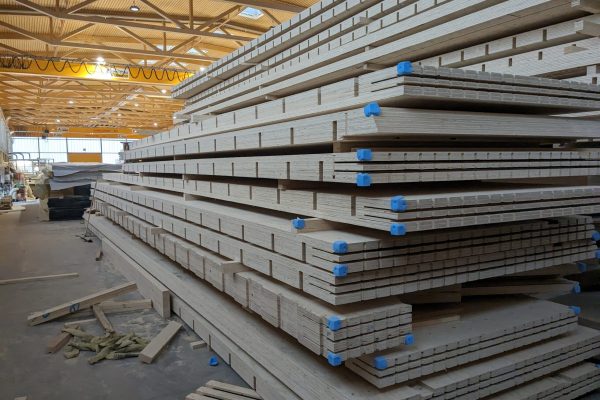

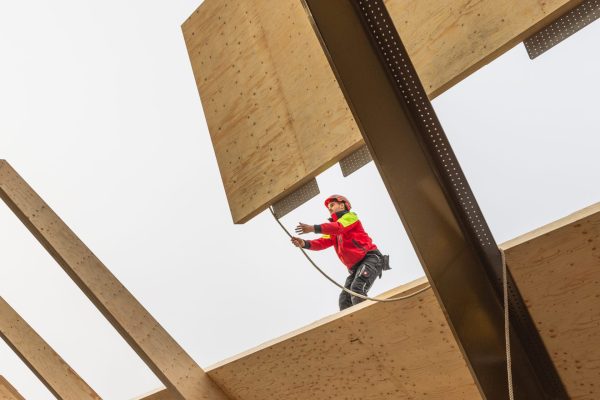

The bridge is designed as an innovative pentagonal box girder made of glued LVL panels. The height of the structure varies from 5 to 7 m above the deck, which keeps the deck low and improves cyclist comfort. The deck itself is 6 m wide. Glued LVL panels were used for all the main structural elements. They are made of 2 to 7 layers of Kerto Q (Metsä Wood), giving a final thickness of up to 22 cm, and the thickness of each panel was optimised for the forces it has to carry. The cross-section combines deck, side and roof panels, joined by inclined screws that transfer shear between the panels. Transverse LVL frames placed every 3 m inside the bridge ensure lateral stability. Two steel portals at each end transfer these forces to the supports and increase the overall stiffness of the structure.

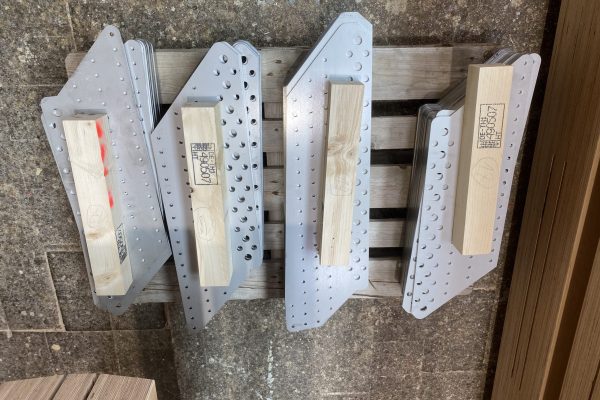

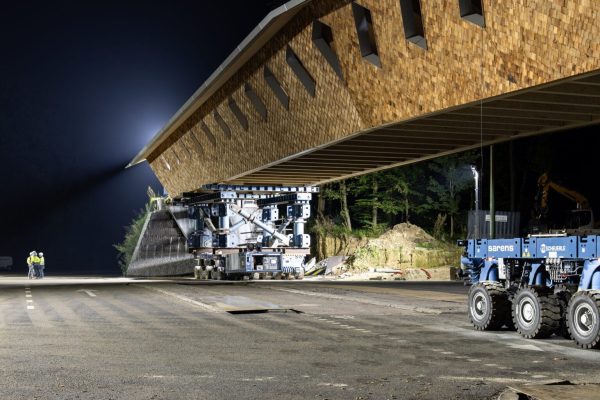

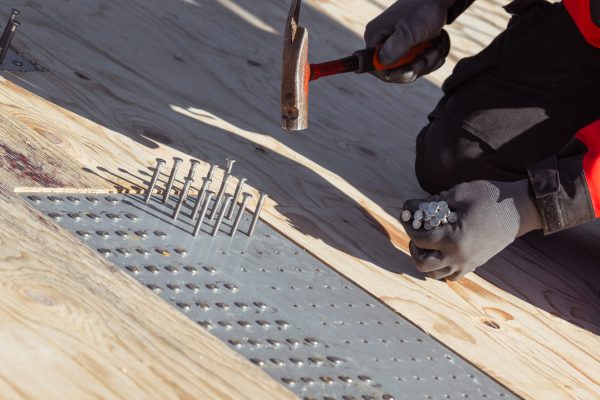

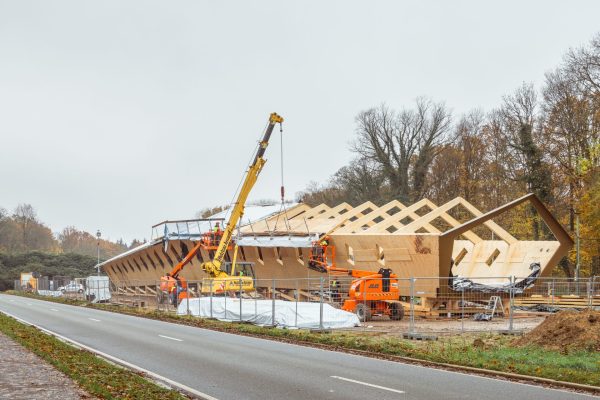

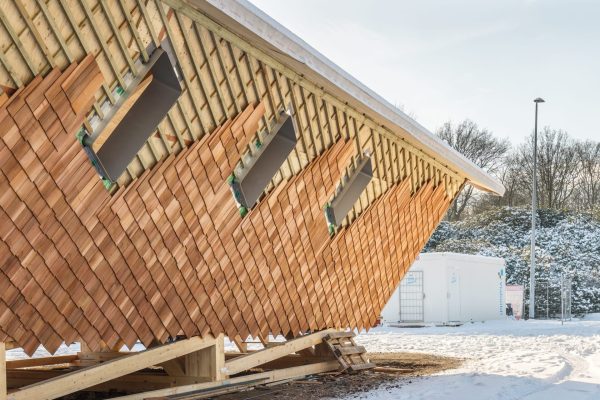

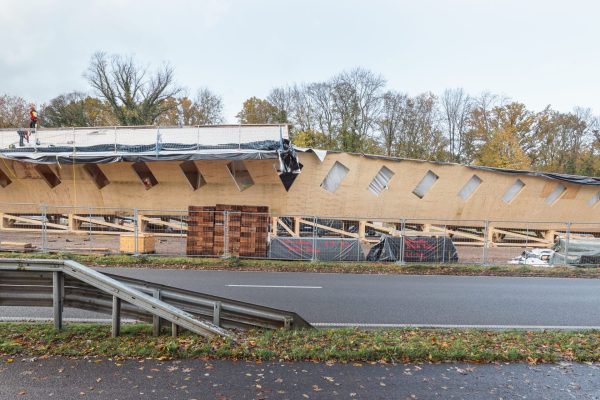

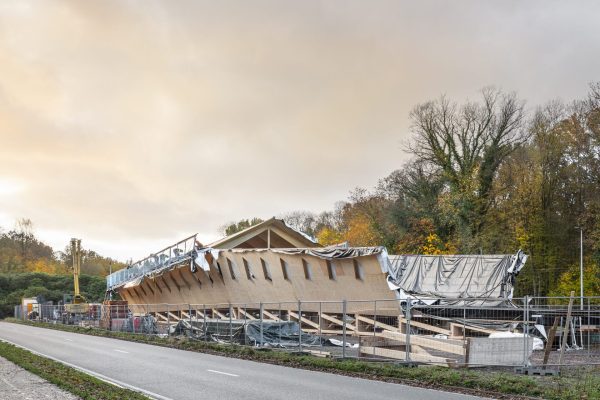

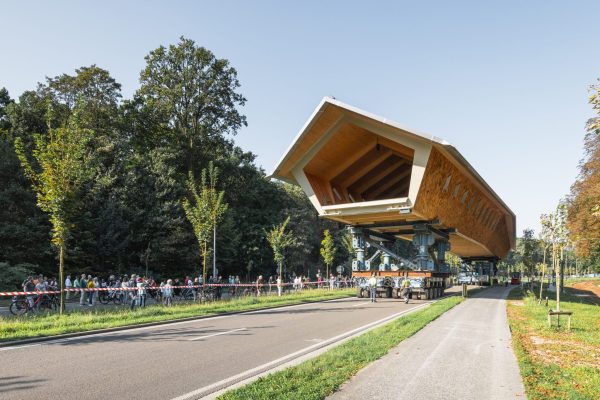

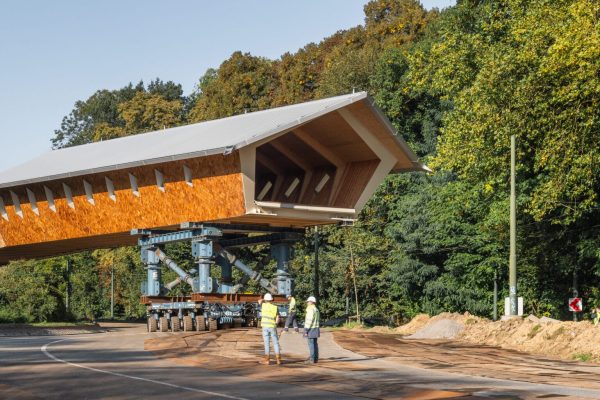

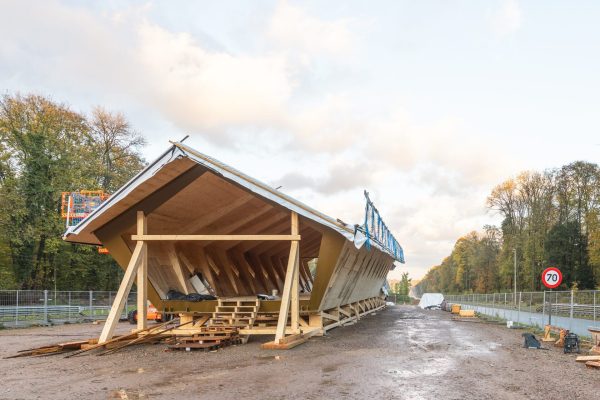

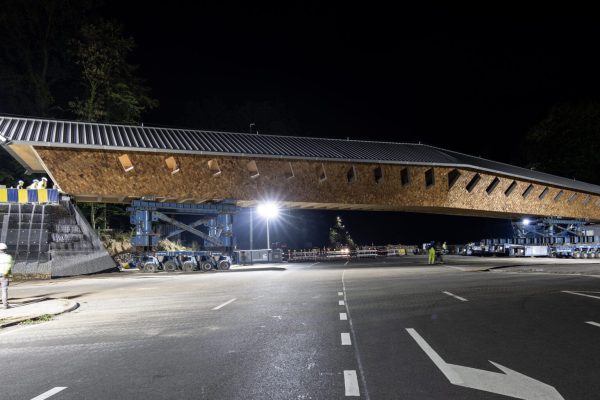

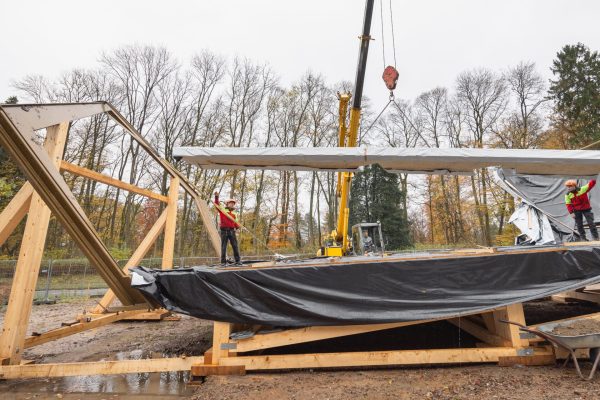

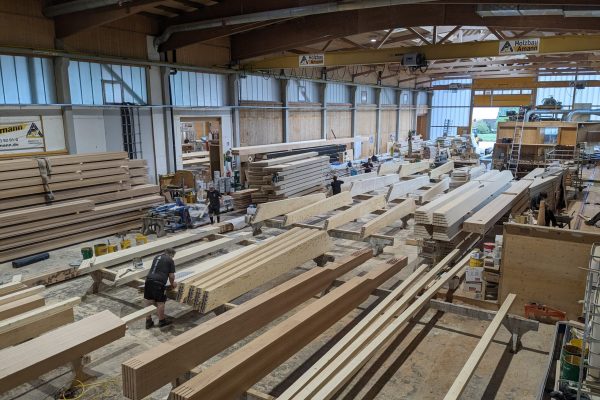

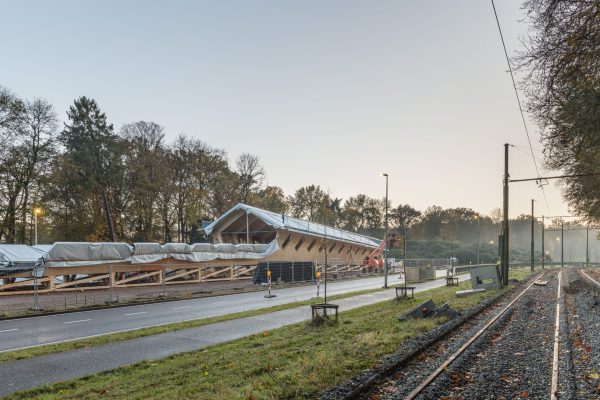

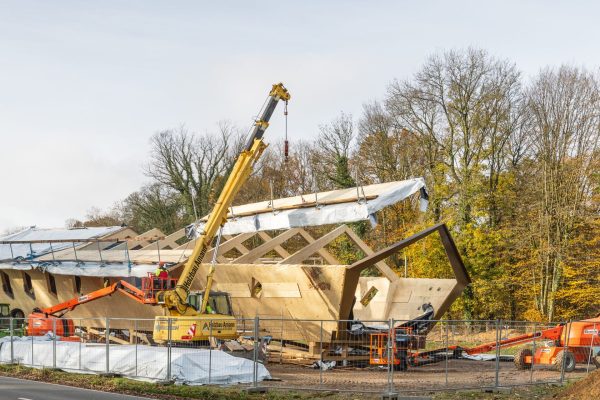

Given its long span, the bridge was divided into six segments of no more than 12 m each, to stay within standard transport limits. The segments were prefabricated on the ground near Avenue de Tervueren, about 800 m from the final site, and joined with embedded steel plates and dowels, with particular care given to moisture-resistant connections to ensure long-term durability.

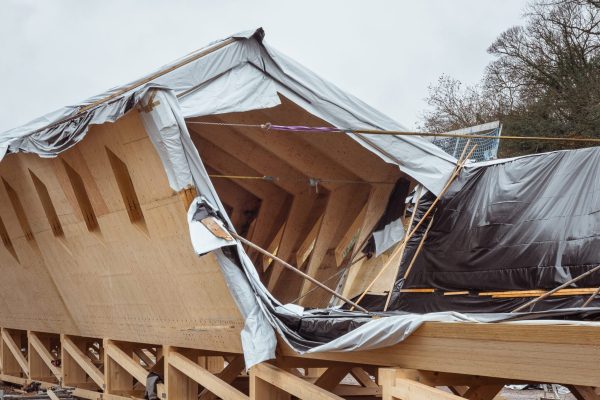

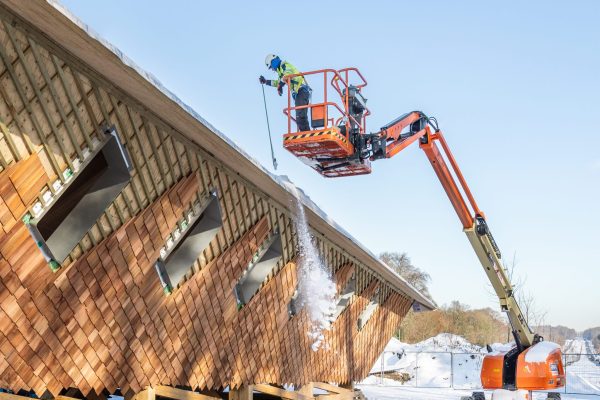

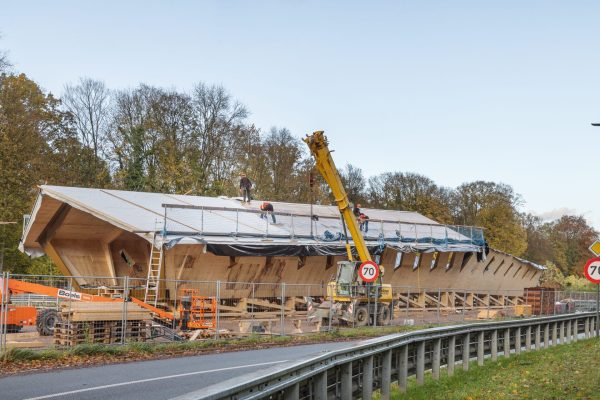

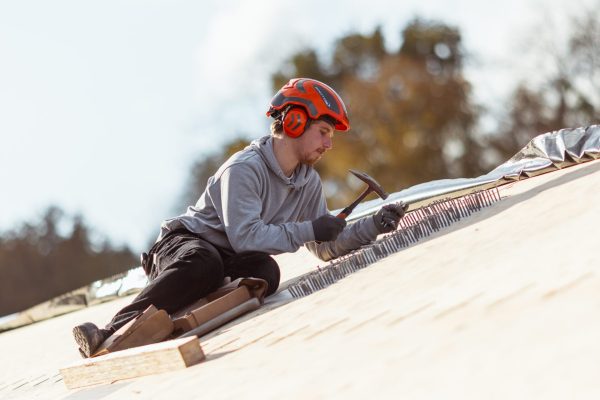

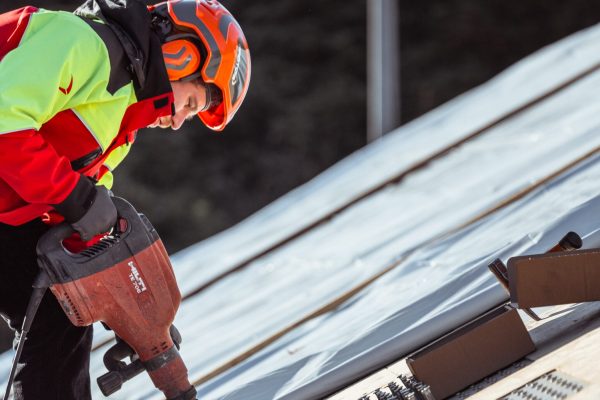

To protect the timber from the weather, the bridge has an extended roof of aluminium panels that shields the structure from rain falling at up to 45°. Construction was planned in six stages so that the timber was quickly covered and protected from standing water. This approach significantly extends the life of the bridge and simplifies its maintenance.
Vier Armen, 3080 Tervuren, BELGIUM
