Photo of Nautile Sylvestre pavilion, cultural building in Libramont, Belgium

19.015.10

Nautile Sylvestre pavilion

Belgium

Libramont

0 sqm

Context

The pavilion built for the Foire de Libramont 2019 (“Demo Forest”) showcases an innovative technique for bending cross-laminated timber panels. A double-helix staircase leads visitors to an elevated platform (+4.5 m) offering a view over the exhibition grounds. The steps are held by a set of prefabricated curved CLT panels.

Particularities

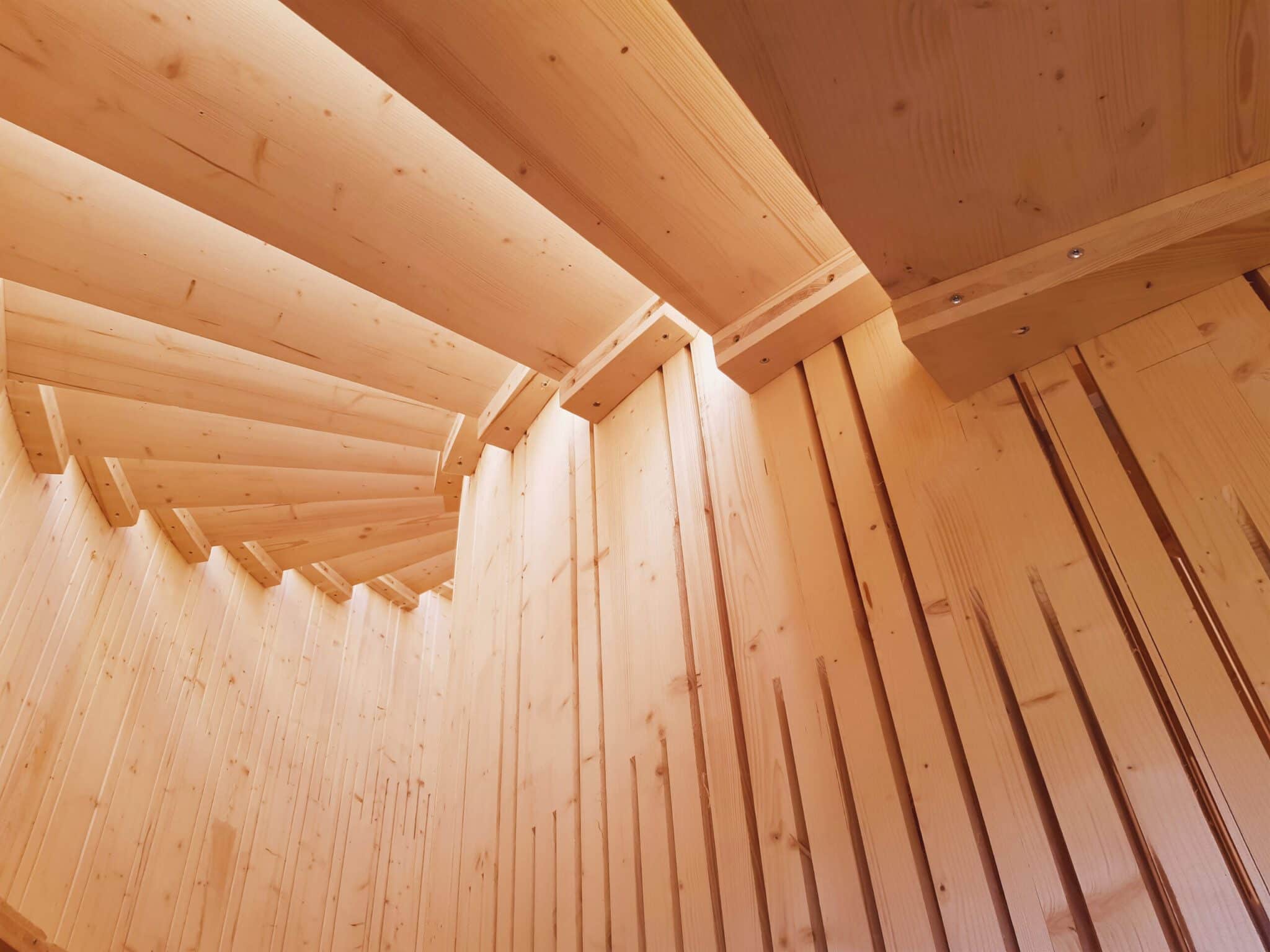

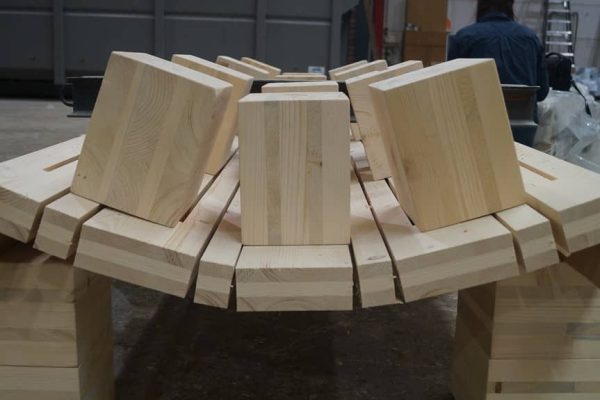

The CLT panels are notched with a “lattice hinge” pattern, sawn while the panels are flat. The curvature is obtained by twisting the vertical strips, combined with the overall loss of stiffness of the notched panel. Thanks to parametric design, the length of the notches varies with the radius of curvature: as the radius decreases towards the centre of the pavilion, the pattern changes accordingly. The overall stability comes from the interaction between the curved walls, which act as a shell, and the steps, which transfer horizontal loads between the wall layers.

Mission Type
Global stability study
Study
2019
Architect
Art & Build - Saïse Design
Contractor
Laminated Timber Solutions

Modelisation

3D model of Nautile Sylvestre pavilion, cultural building in Libramont, Belgium
19.015.10 2019 07 26 15 29 56 19.015.10 EXE Rapport 02 Étude D'Exécutions.docx Word
19.015.10 Scia

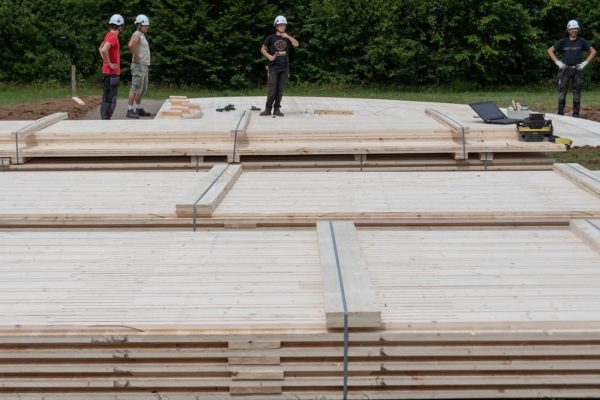

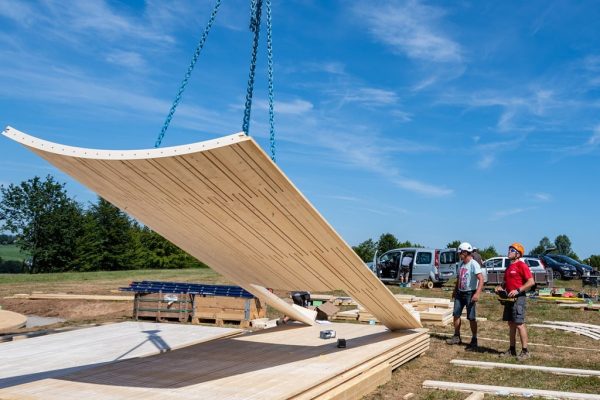

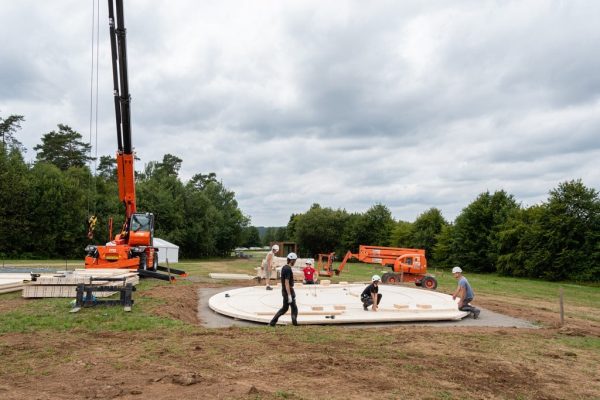

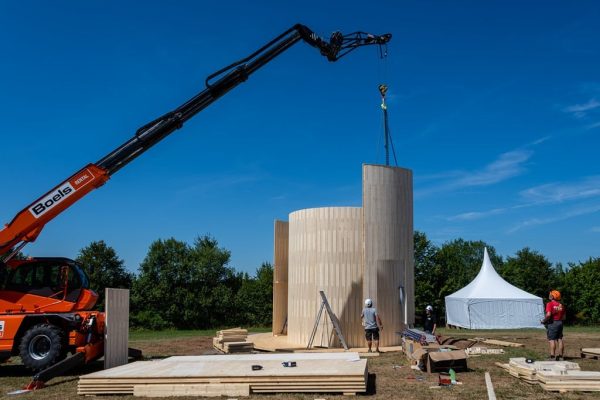

Construction site

Construction site of Nautile Sylvestre pavilion, cultural building in Libramont, Belgium
Construction site of Nautile Sylvestre pavilion, cultural building in Libramont, Belgium
Construction site of Nautile Sylvestre pavilion, cultural building in Libramont, Belgium
Construction site of Nautile Sylvestre pavilion, cultural building in Libramont, Belgium
Construction site of Nautile Sylvestre pavilion, cultural building in Libramont, Belgium
